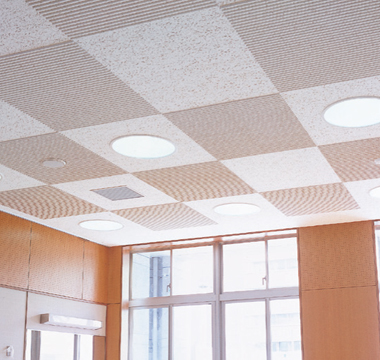

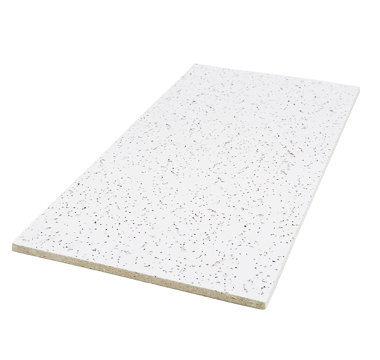

    Introduction
    Byucksan Systone is the noninflammable/insulating/sound absorbing ceiling system formed in sheets from the main material of fibrous mineral wool as melting blast-furnace slag and natural minerals at a high temperature.
    Byucksan Systone shows non-flammability which is a compulsory condition of the fire safety for modern buildings, and could solve the noise issues of various buildings by absorbing/blocking the in/outdoor noises that may affect the work efficiency.
    Moreover, creative design and size preciseness of Byucksan Systone provides creative ideas while establishing an interior design.
    Certificates
    Mark001 Mark002 Mark003 방재시험연구원 엠블렘 B Type(소)-iloveimg-resized.jpg
    Application
    School, office, commercial, hospital, hall, etc.
    Features
    • Excellent sound absorption

      Sound absorbing Systone can create
      refreshing environment as controlling the
      interior echo and exterior noises.

      Excellent sound absorption
    • High Insulation Performance

      Maintain internal temperature and
      block external temperature with high
      thermal resistance is considered to be
      a standard of insulation effect to make
      warm winter and cool summer.
      (Systone thermal resistance:
      Higher than KS L 9105 standard)

      High Insulation Performance
    • Various Design

      Systone has new sense to create fancy
      and modern atmosphere, and available
      to have diverse interior designs from
      big-size buildings to small-size stores.

      Various Design
    • Size Stability

      Available to maintain the original beauty
      for a long period of time as Systone can
      unify the ceiling surface with accurate
      sizes and angles of sections.
      (Perpendicularity : 1/1000 or lower)

      Size Stability
    • Harmlessness

      Systone is an eco-friendly product
      produced with blast furnace slag
      and natural ore.

      Harmlessness
    • Lightness

      Systone is convenient in delivery
      or easy to handle with lighter density
      (500kg/㎥ or less) than other ceiling
      tiles, and reduce weight of building.

      Lightness
    • Processability

      Available to construct ceiling in various
      ways as Systone is easy to cut with
      knife or saw.

      Processability
    • Non-flammability

      Systone is a non-flammable ceiling tile
      appropriate to the Korean Industrial
      Standard KS F ISO 1182, KS F2271.

      Non-flammability
    Construction Cases

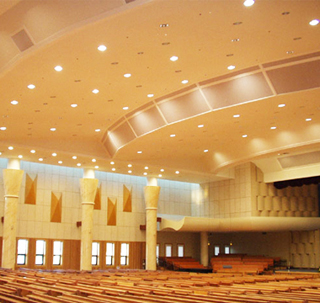

    Daecheon Baptist Church Daecheon Baptist Church

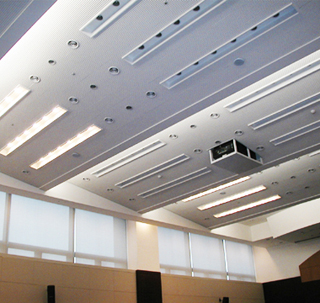

    Hall within Myeongji Building Hall within Myeongji Building

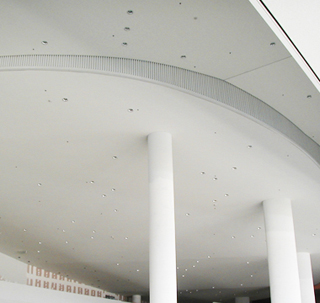

    Gwangju New City Hall Gwangju New City Hall

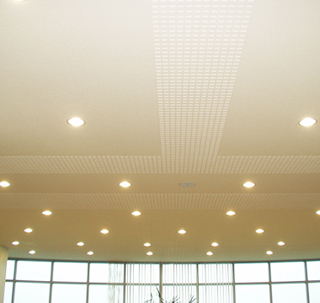

    KAITEC, Daejeon KAITEC, Daejeon

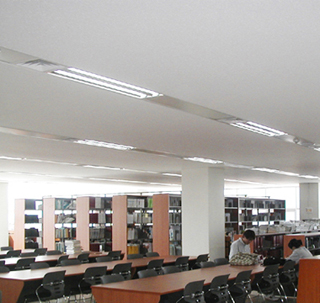

    Doowon Technical University Doowon Technical University
    Millennium Hall, Dongseo University Millennium Hall, Dongseo University

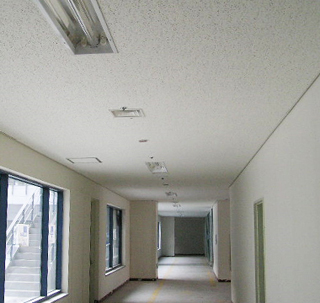

    Train Depot Train Depot

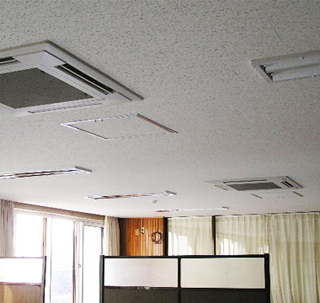

    Dajin High School Dajin High School

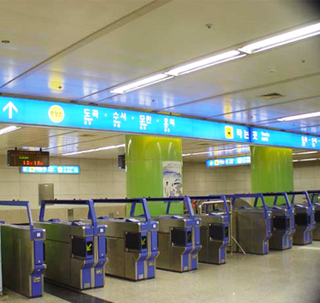

    Seolleung Station, Subway Bundang Line Seolleung Station, Subway Bundang Line
    Hyundai Construction Hyundai Construction

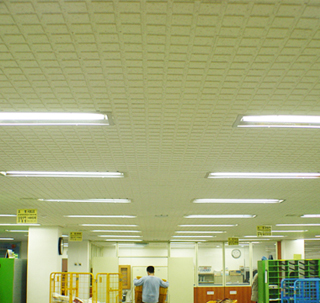

    Seocho Post Office Seocho Post Office

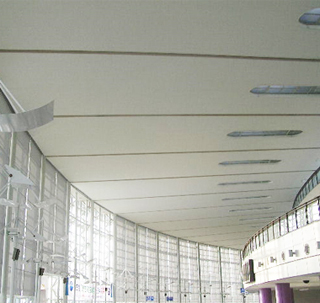

    Dongdaegu Station Dongdaegu Station

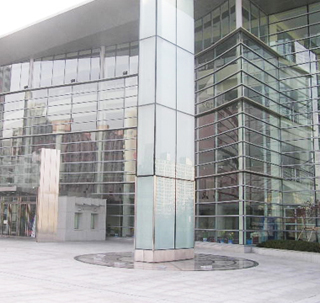

    Daegu Opera House Daegu Opera House

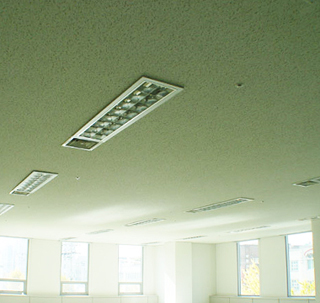

    Unibooks Company Building Unibooks Company Building

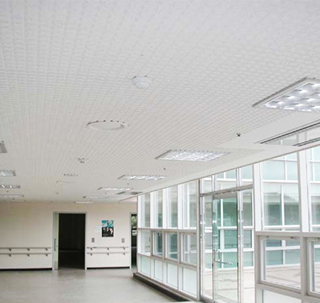

    Anyang General Welfare Center for the Disabled Anyang General Welfare Center for the Disabled

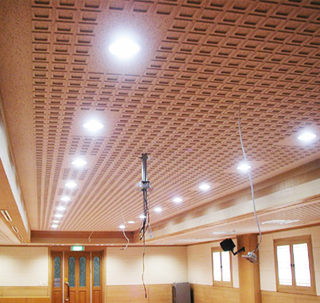

    Reception for New Believers - Sungrak Church Reception for New Believers - Sungrak Church

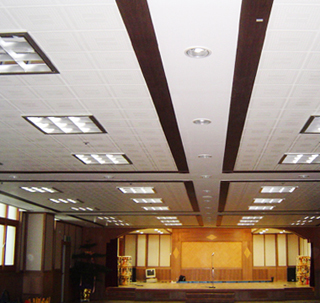

    Haedal Kindergarten, Gwangju Haedal Kindergarten, Gwangju

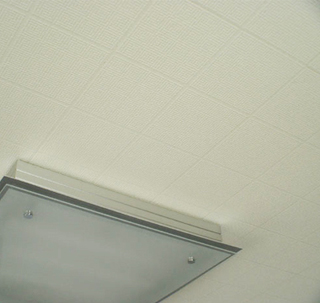

    Pyeongnae Garden Village Pyeongnae Garden Village

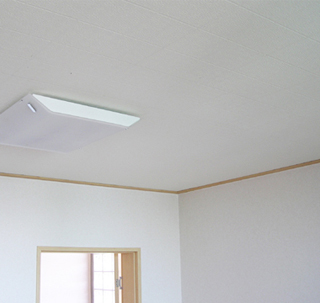

    Giheung Villa Giheung Villa

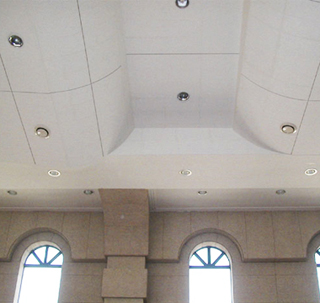

    Life Word Mission Hwasun Church Life Word Mission Hwasun Church

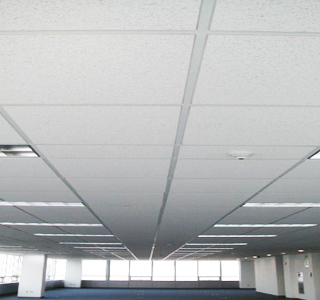

    Apple Tower Apple Tower

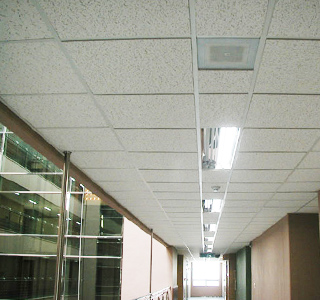

    Guro E-BIZ Building Guro E-BIZ Building
    Systone FISSURED
    (Standard Form)

    Standard of Mineral Wool Sound Absorbing Ceiling Plate with

    Natural fissured pattern which is appropriate anywhere, and make interior look better.
    • SF-1200
      SF-1200
      Size : 12×300×600㎜
      Packing : 18 sheets(3.24㎡)/BOX
    • SMF-440(9T)
      SMF-440(9T)
      Size : 9×300×600㎜
      Packing : 24 sheets(4.32㎡)/BOX
      SMF-440(9T) is only available when constructing with CUBE, STRIPE products.
    • SMF-440(12T)
      SMF-440(12T)
      Size : 12×300×600㎜
      Packing : 18 sheets(3.24㎡)/BOX
      SMF-440(12T) is only available when constructing with CUBE, STRIPE products.
    Systone STRIPE

    (Product with thickness of 15mm)

    Stripe patterned mineral wool sound absorbing ceiling system creating diverse ceiling with combination of border
    • SMS-4412(3D)
      SMS-4412(3D)
      Size : 15×300×600㎜
      Packing : 18 sheets(3.24㎡)/BOX
    • SMS-4412(6D)
      SMS-4412(6D)
      Size : 15×300×600㎜
      Packing : 18 sheets(3.24㎡)/BOX
    • SMS-4424
      SMS-4424
      Size : 15×300×600㎜
      Packing : 18 sheets(3.24㎡)/BOX
    Systone CUBE

    (Product with thickness of 15mm)

    Stripe patterned mineral wool sound absorbing ceiling system creating diverse ceiling with combination of border
    • SMC-4412(3D)
      SMC-4412(3D)
      Size : 15×300×600㎜
      Packing : 18 sheets(3.24㎡)/BOX
    • SMC-4412(6D)
      SMC-4412(6D)
      Size : 15×300×600㎜
      Packing : 18 sheets(3.24㎡)/BOX
    • SMC-4404
      SMC-4404
      Size : 15×300×600㎜
      Packing : 18 sheets(3.24㎡)/BOX
    • SMC-4406
      SMC-4406
      Size : 15×300×600㎜
      Packing : 18 sheets(3.24㎡)/BOX
    Systone T-Bar
    FISSURED
    Most representative pattern, type in combination of pin, background and bug patterns
    • STF-400
      STF-400
      Size : 15×603×603㎜
      Packing : 10 sheets/BOX
      Producible Size : 15×594×594㎜
    • STF-410
      STF-410
      Size : 15×603×603㎜
      Packing : 10 sheets/BOX
      Producible Size : 15×594×594㎜
    Systone HIGH STYLE
    Systone high style stands out the design of office space with remarkable visual design
    • STC-4110
      STC-4110
      Size : 15×603×603㎜
      Packing : 10 sheets/BOX
      Edge Type : Reveal
      T-Bar Specification : 25mm
    Systone PINPOINT & SAHARA - PINPOINT : Combination of round pin pattern of different diameters without directivity - SAHARA : Coat and paint silica (sand) on the Systone surface then process pin pattern to allow to feel luxurious but simple texture
    • STP-200
      STP-200
      Size : 15×603×603㎜
      Packing : 10 sheets/BOX
      Producible Size : 15×594×594㎜
      Edge Type : Square
      T-Bar Specification : 20mm , 25mm
    • STP-210
      STP-210
      Size : 15×603×603㎜
      Packing : 10 sheets/BOX
      Producible Size : 15×594×594㎜
      Edge Type : Reveal
      T-Bar Specification : 20mm , 25mm
    • STA-A00
      STA-A00
      Size : 15×603×603㎜
      Packing : 10 sheets/BOX
      Edge Type : Square
      T-Bar Specification : 20mm , 25mm
    • STA-A10
      STA-A10""
      Size : 15×603×603㎜
      Packing : 10 sheets/BOX
      Edge Type : Reveal
      T-Bar Specification : 20mm , 25mm
    Systone T&H-Bar FISSURED
    Standard type for T&H Bar, simple fissured pattern to create big-standardization of ceiling

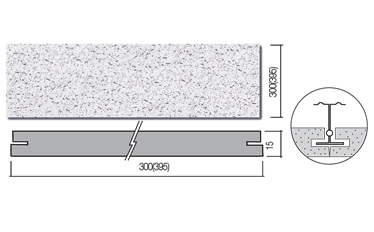

    • STHF-420
      STHF-420
      Size : 15×300(395)×1210(1500)㎜
      Packing : 10 sheets/BOX
      Producible Size : 15×300(395)×750~1800㎜
      Edge Type : Square/Kerfed

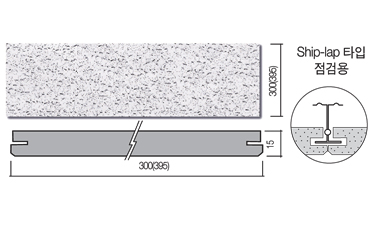

    • STHF-421
      STHF-421
      Size : 15×300(395)×1210(1500)㎜
      Packing : 10 sheets/BOX
      Producible Size : 15×300(395)×750~1800㎜
      Edge Type : Beveled/Kerfed
    Systone T&H-Bar Sahara
    Coat and paint silica (sand) on the Systone surface then process pin pattern to allow to feel luxurious but simple texture

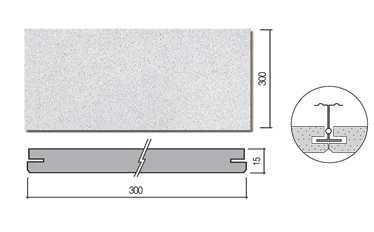

    • STHA-A21
      STHA-A21
      Size : 15×300×1,210㎜
      Packing : 10 sheets/BOX
      Edge Type : Beveled/Kerfed
    Item Unit Performance Test Method (KS, etc.) Standard by KS L 9105
    12mm 15mm
    Standard by KS L 9105 kg/㎥ 390±20 390±20 KS L 9105 500 lower
    Moisture content % 1.0 1.0 3.0 lower
    Bending failure load N 160 210 Thickness 12mm : 60 higher
    Thickness 15mm : 90 higher
    Thermal resistance ㎡·K/W 0.22 0.28 KS F 2277 Thickness 12mm : 0.19 higher
    Thickness 15mm : 0.23 higher
    Average acoustic absorption rate NRC 0.50~0.60 0.50~0.60 KS F 2805 NRC 0.3 (0.21~0.40)
    NRC 0.5 (0.41~0.60)
    NRC 0.7 (0.61~0.80)
    250Hz, 500Hz, 1,000Hz,
    Average value of 2,000Hz
    Flame retardant level - Non-flammability KS F ISO 1182
    KS F 2271    		 Compliance with Non-flammability standard

    ※ The abovementioned physical properties are the average test values, and may vary depending on test conditions.

    M-Bar

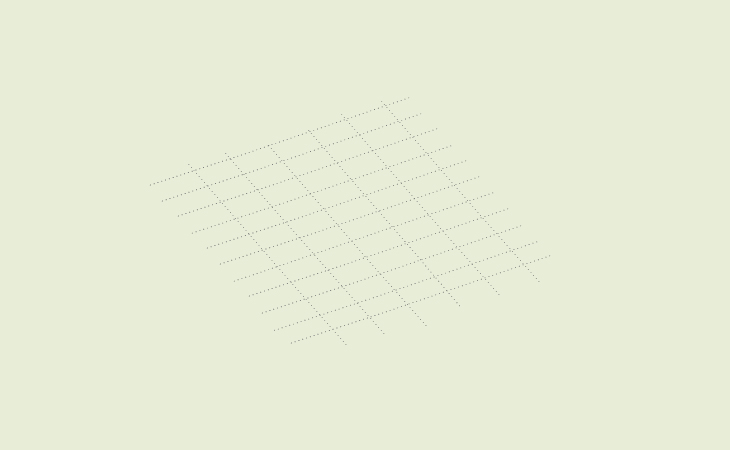

    • 01. Set a center line by considering the other size process of Systone, then install strong anchor and insert in 900~1200mm apart.
      01. Set a center line by considering the other size process of Systone, then install strong anchor and insert in 900~1200mm apart.

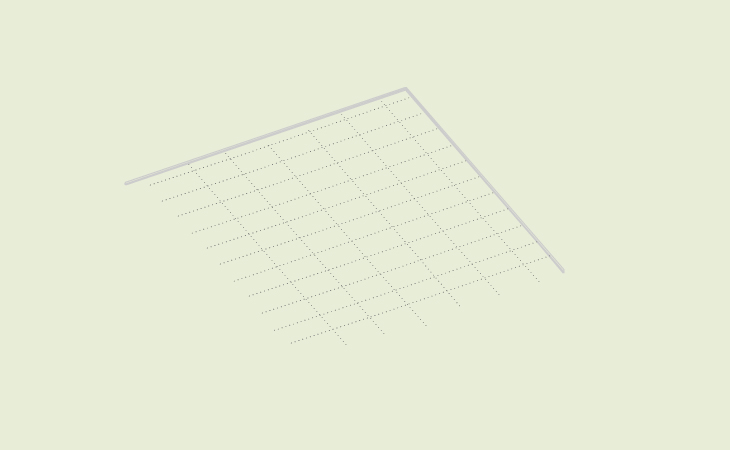

    • 02. Check molding line level, then process wall molding first.
      02. Check molding line level, then process wall molding first.

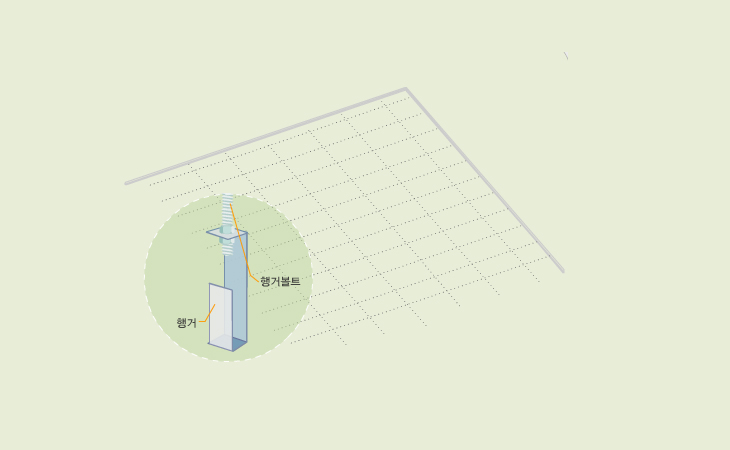

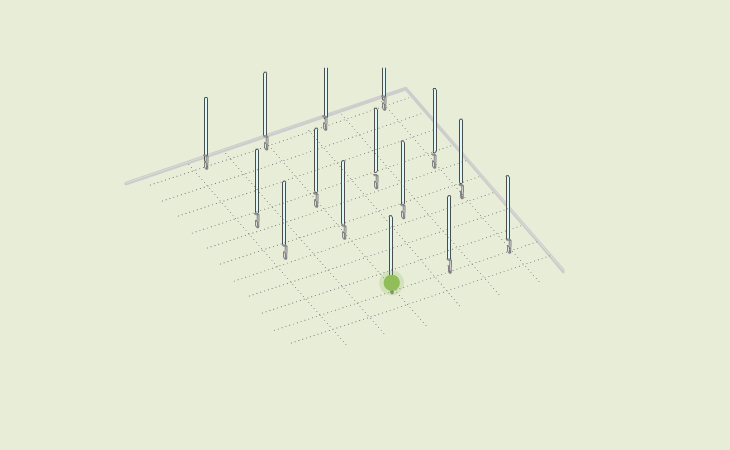

    • 03. Fix hanger bolt to strong anchor and insert.
      03. Fix hanger bolt to strong anchor and insert.
    • 03. Fix hanger bolt to strong anchor and insert.
      03. Fix hanger bolt to strong anchor and insert.

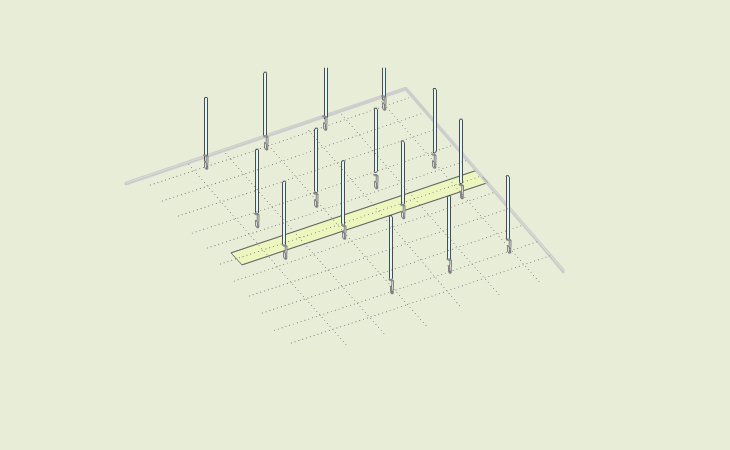

    • 04. Set a lighting fixture line.
      04. Set a lighting fixture line.
    • 05. Connect carrying channel installation hanger set and carrying channel with carrying joint.
      05. Connect carrying channel installation hanger set and carrying channel with carrying joint.
    • 05. Connect carrying channel installation hanger set and carrying channel with carrying joint.
      05. Connect carrying channel installation hanger set and carrying channel with carrying joint.

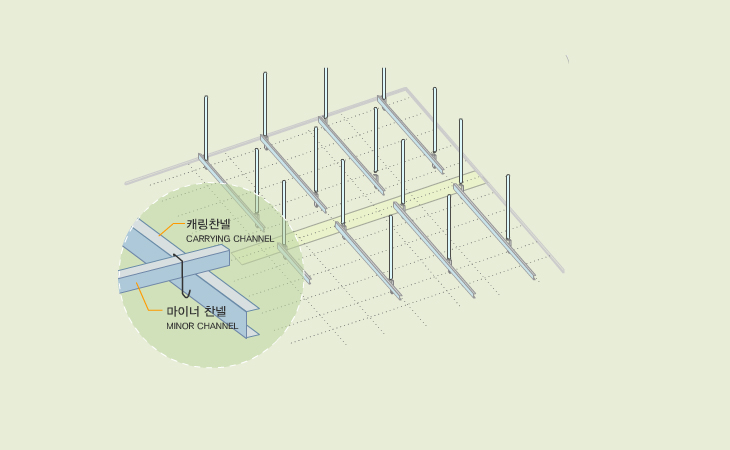

    • 06. Install minor channel.
      06. Install minor channel.

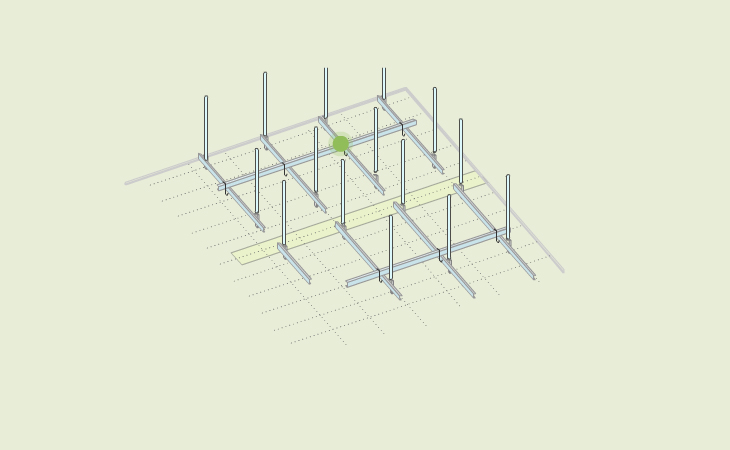

    • 06-1. Install in 2000~3000 space with clip.
      06-1. Install in 2000~3000 space with clip.

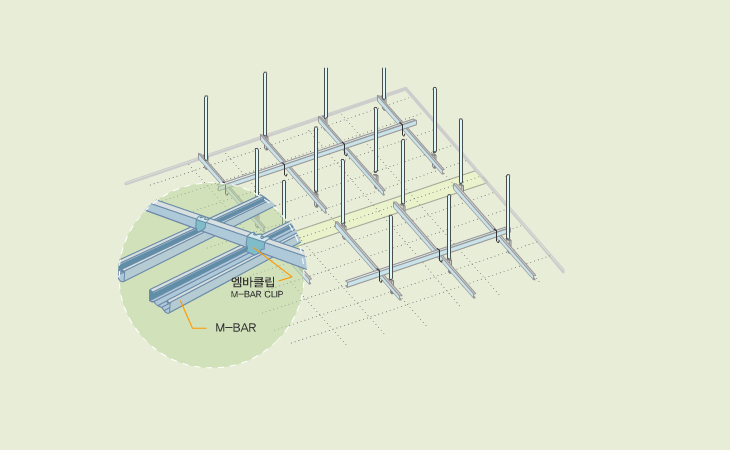

    • 07. Install M-Bar in 300mm space.
      07. Install M-Bar in 300mm space.

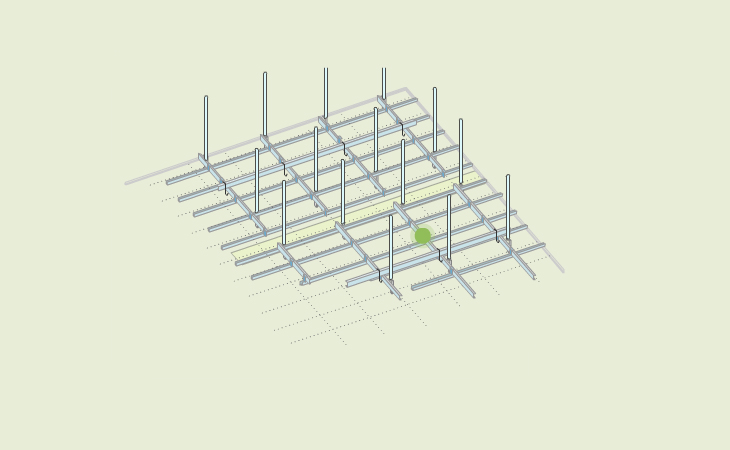

    • 07-1. Fix with carrying channel and M-Bar clip.
      07-1. Fix with carrying channel and M-Bar clip.

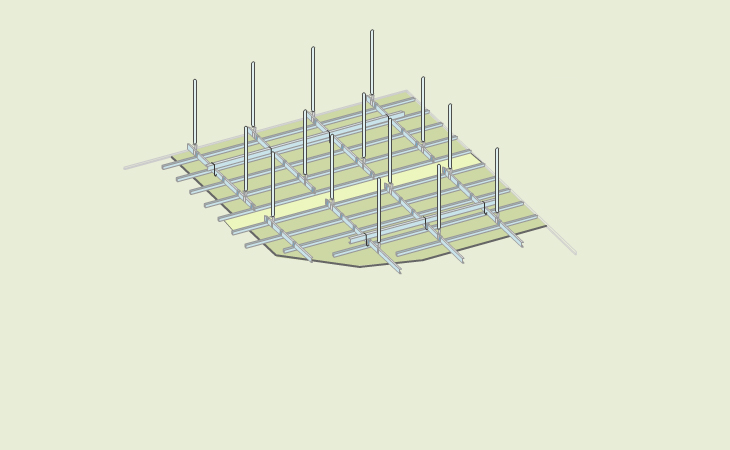

    • 08. Install gypsum board shifting board.
      08. Install gypsum board shifting board.
    • 08. Install gypsum board shifting board.
      08. Install gypsum board shifting board.
    • 09. Apply exclusive Systone bond to back of Systone to attach, then fix with stapler.
      09. Apply exclusive Systone bond to back of Systone to attach, then fix with stapler.

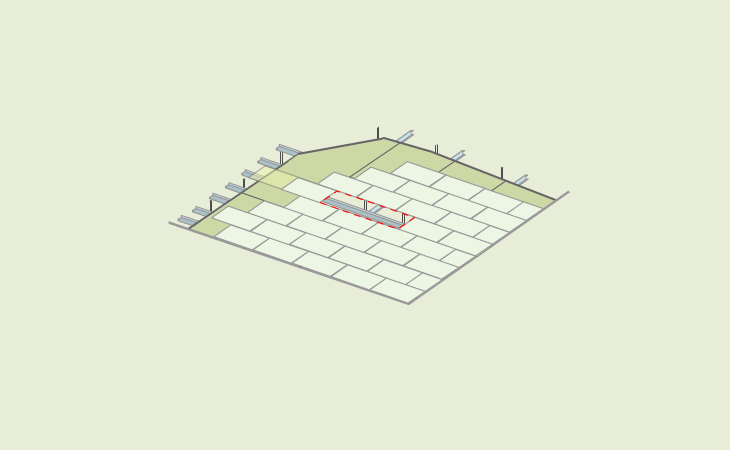

    • 09-1. Prepare a part to install lighting fixture from the set lighting line.
      09-1. Prepare a part to install lighting fixture from the set lighting line.
    T-Bar

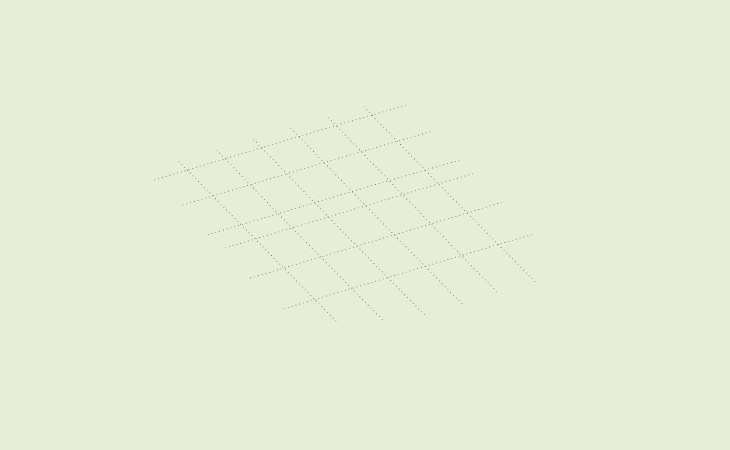

    • 01. Set a center line.
      01. Set a center line.

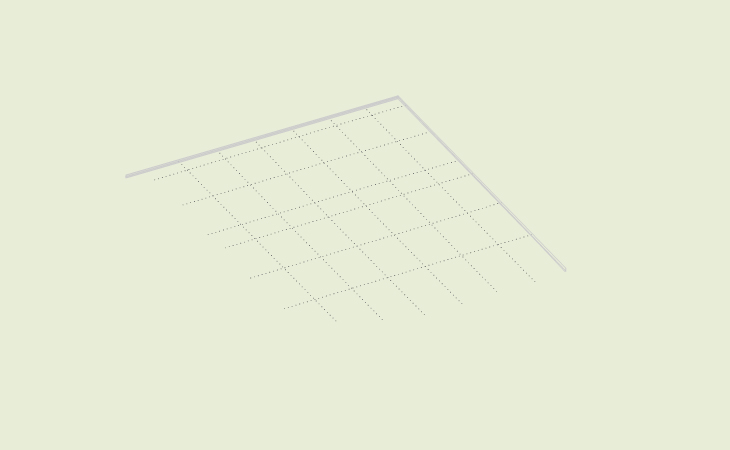

    • 02. Check molding line and level.
      02. Check molding line and level.

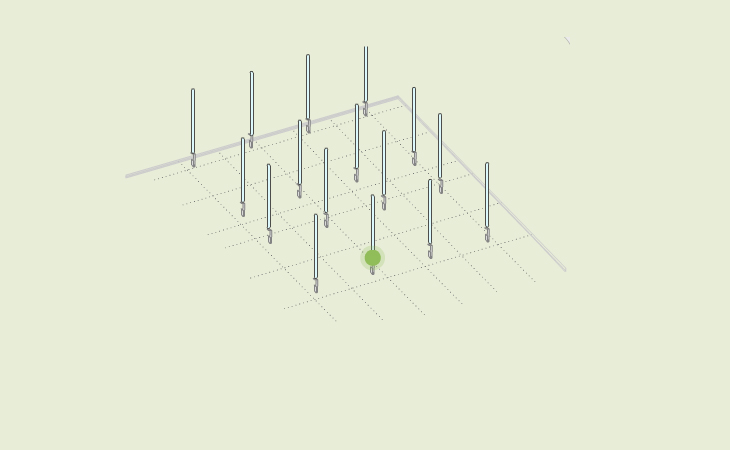

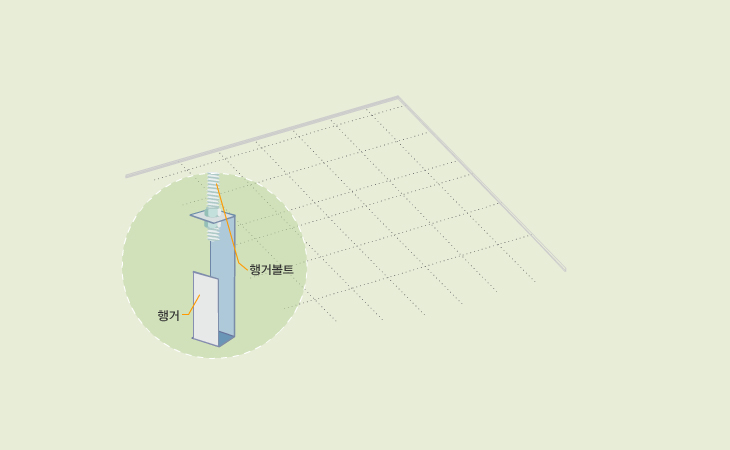

    • 03. Install hanger bolt.
      03. Install hanger bolt.
    • 03. Install hanger bolt.
      03. Install hanger bolt.

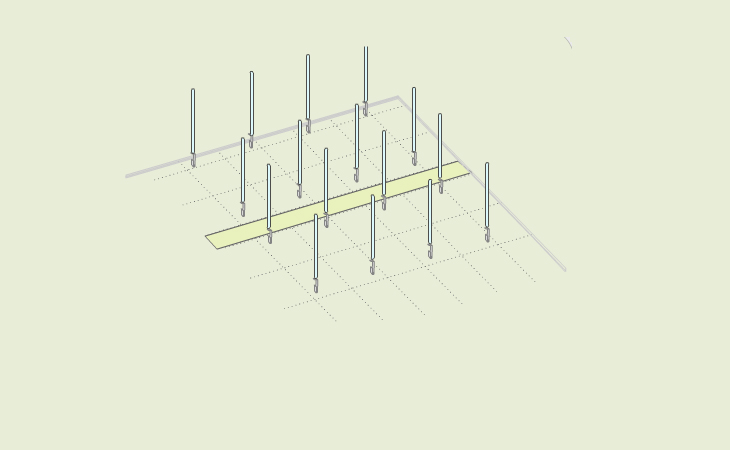

    • 04. Set a lighting fixture line.
      04. Set a lighting fixture line.

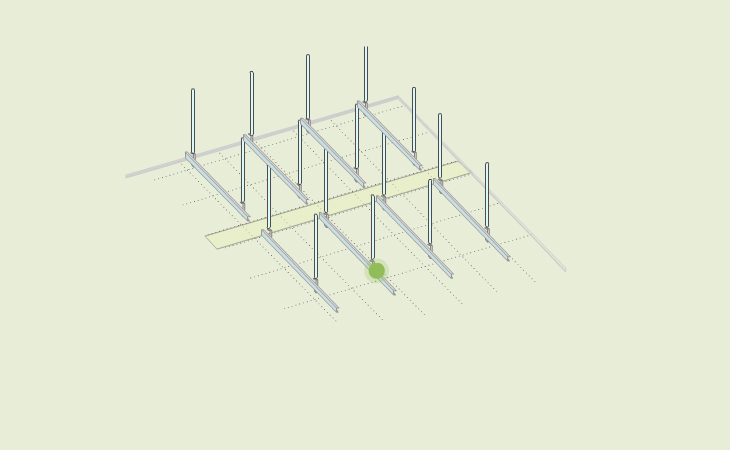

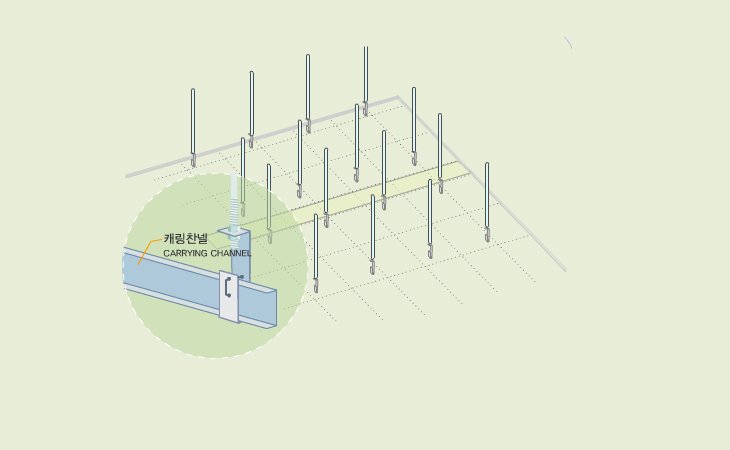

    • 05. Install carrying channel.
      05. Install carrying channel.
    • 05. Install carrying channel.
      05. Install carrying channel.

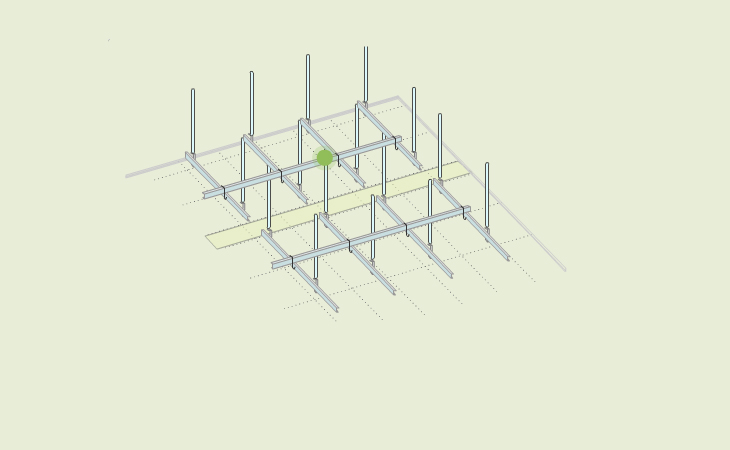

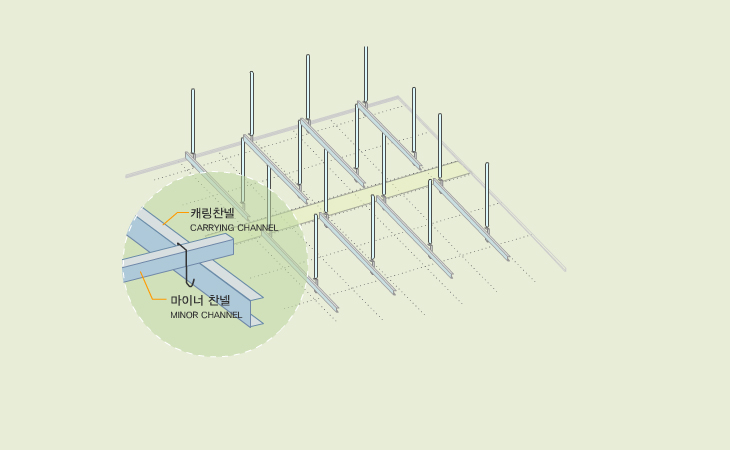

    • 06. Install minor channel.
      06. Install minor channel.
    • 06. Install minor channel.
      06. Install minor channel.

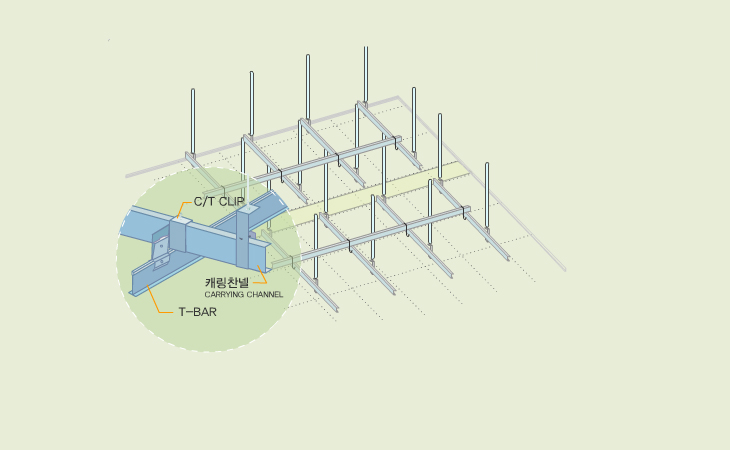

    • 07. Install Main T-Bar.
      07. Install Main T-Bar.

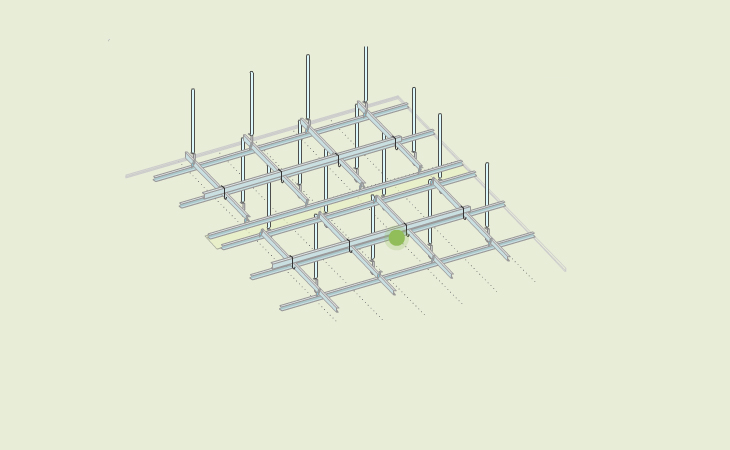

    • * Install in 2000~3000 space with clip.
      * Install in 2000~3000 space with clip.

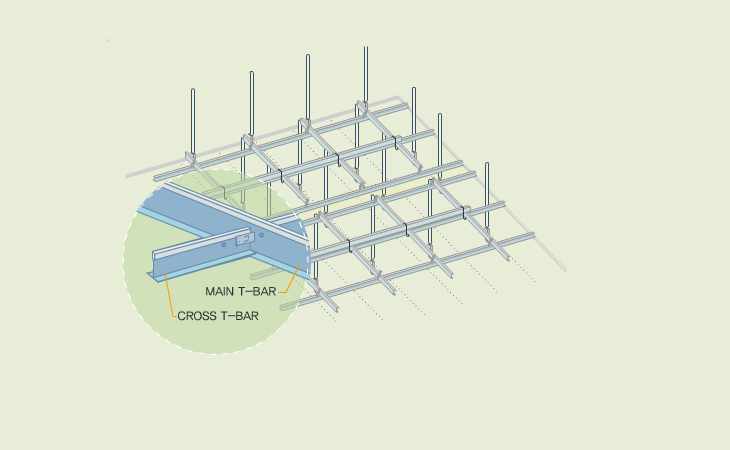

    • 08. Install Cross T-Bar. * Insert Cross T-Bar tip to main T-Bar hole.
      08. Install Cross T-Bar. * Insert Cross T-Bar tip to main T-Bar hole.

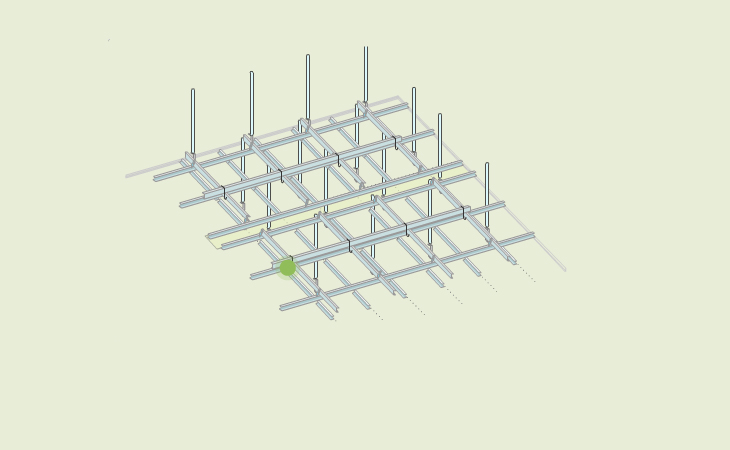

    • * Install as Main T-Bar and Cross T-Bar are perpendicular. * Make sure connected Cross T-Bar is in a straight line.
      * Install as Main T-Bar and Cross T-Bar are perpendicular. * Make sure connected Cross T-Bar is in a straight line.

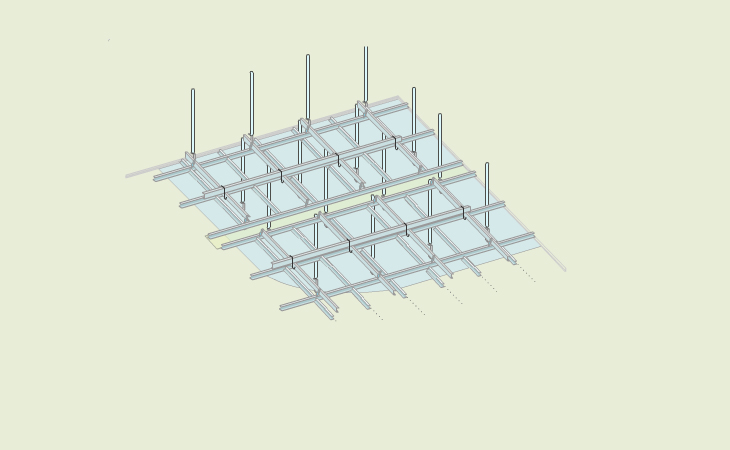

    • 09. Readjust level of Systone installed ceilings, then fit accurately with hanger bolts and nuts. Put Systone and fix by inserting down clips.
      09. Readjust level of Systone installed ceilings, then fit accurately with hanger bolts and nuts. Put Systone and fix by inserting down clips.
    T&H-Bar

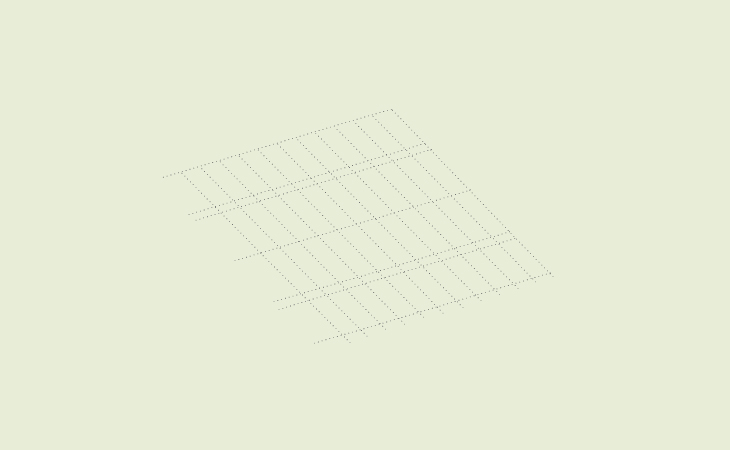

    • 01. Set a center line.
      01. Set a center line.

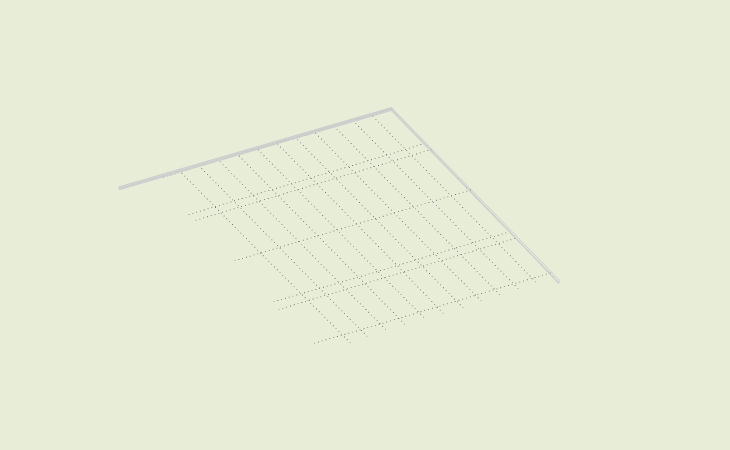

    • 02. Check molding line and level.
      02. Check molding line and level.

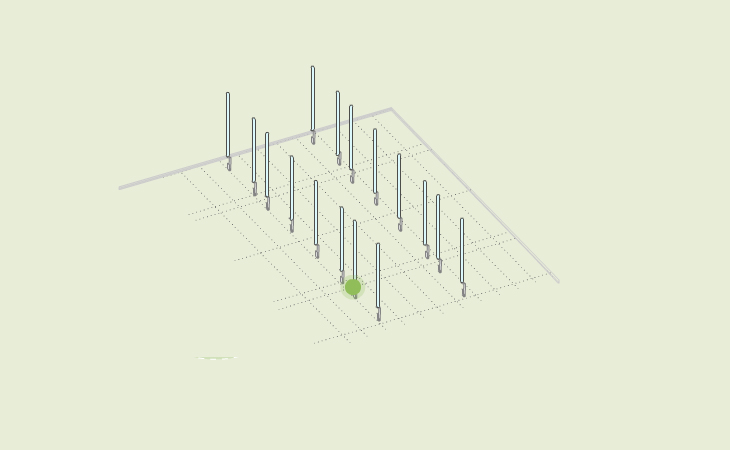

    • 03. Install hanger bolt.
      03. Install hanger bolt.
    • 03. Install hanger bolt.
      03. Install hanger bolt.

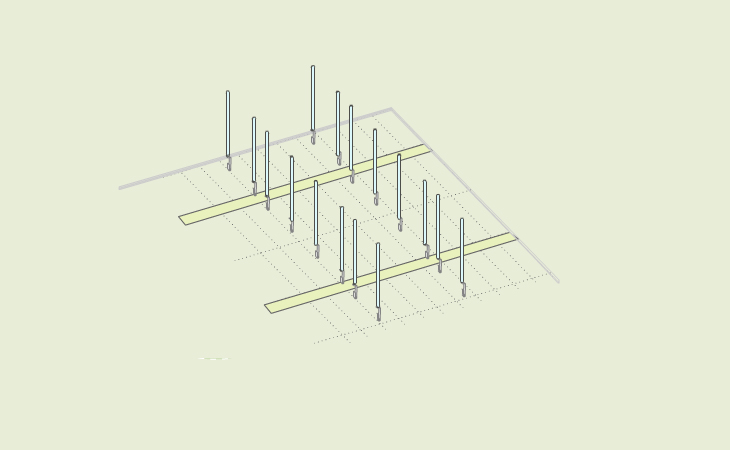

    • 04. Set a lighting fixture line.
      04. Set a lighting fixture line.

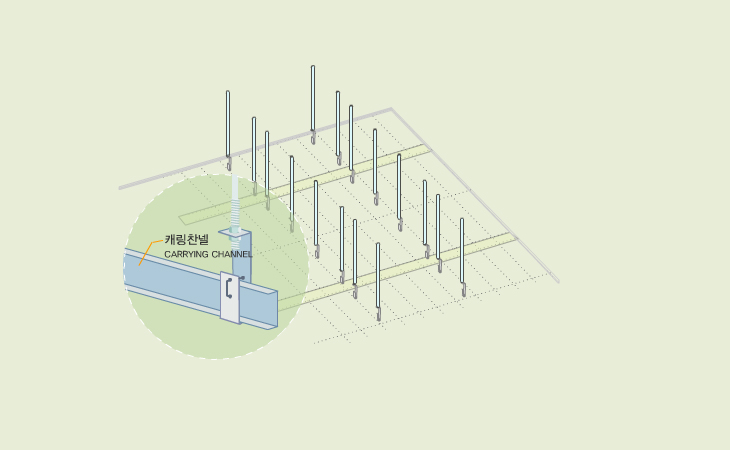

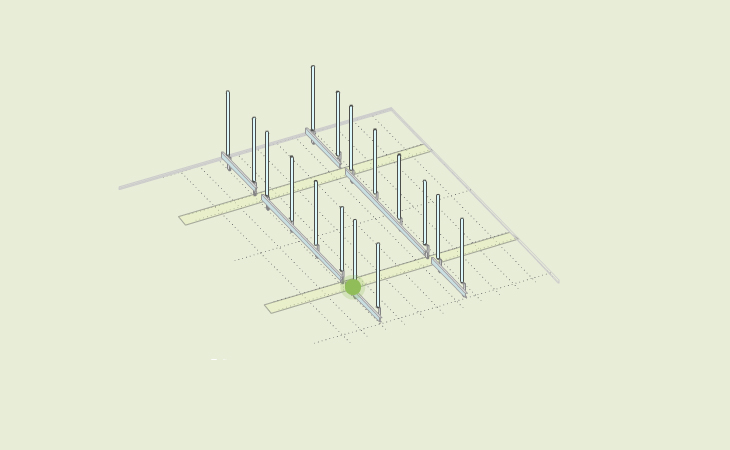

    • 05. Install carrying channel.
      05. Install carrying channel.
    • 05. Install carrying channel.
      05. Install carrying channel.
    • 06. Install minor channel.
      06. Install minor channel.
    • 06. Install minor channel.
      06. Install minor channel.

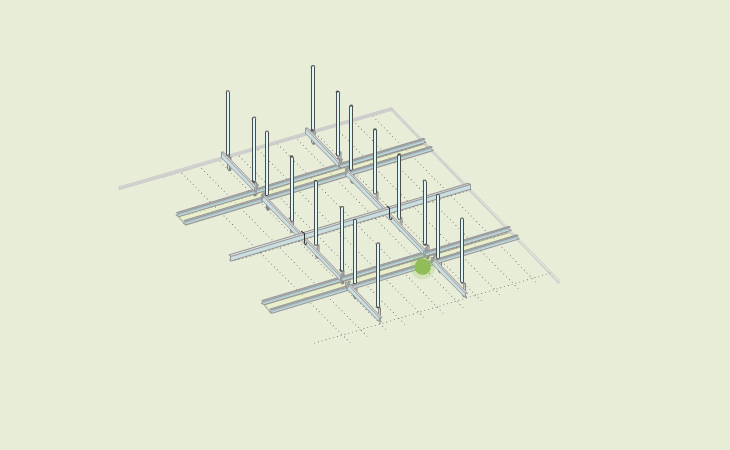

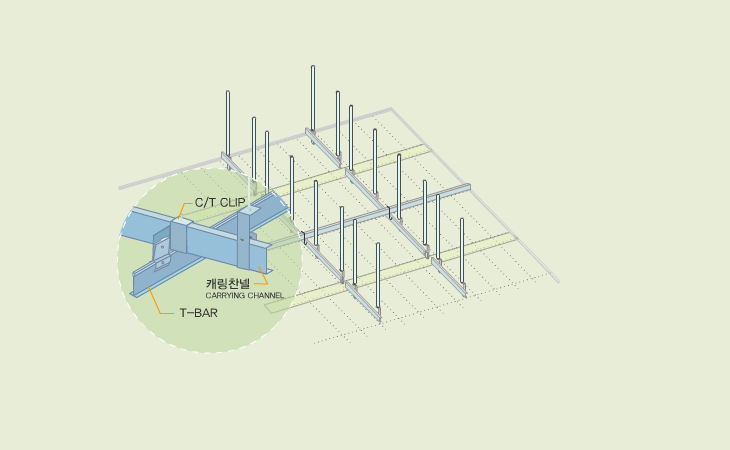

    • 07. Install Main T-Bar. * Install in 2000~3000 space with clip.
      07. Install Main T-Bar. * Install in 2000~3000 space with clip.
    • 07. Install Main T-Bar. * Install in 2000~3000 space with clip.
      07. Install Main T-Bar. * Install in 2000~3000 space with clip.

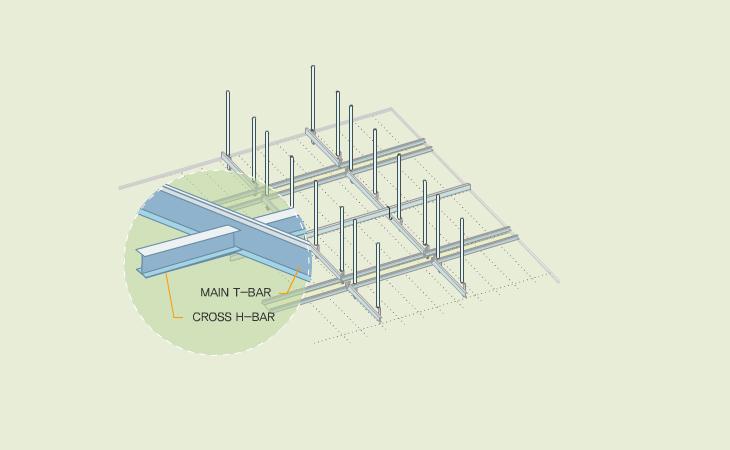

    • 08. Install Systone. Readjust level of ceilings, then fit accurately with hanger bolts and nuts.
      08. Install Systone. Readjust level of ceilings, then fit accurately with hanger bolts and nuts.

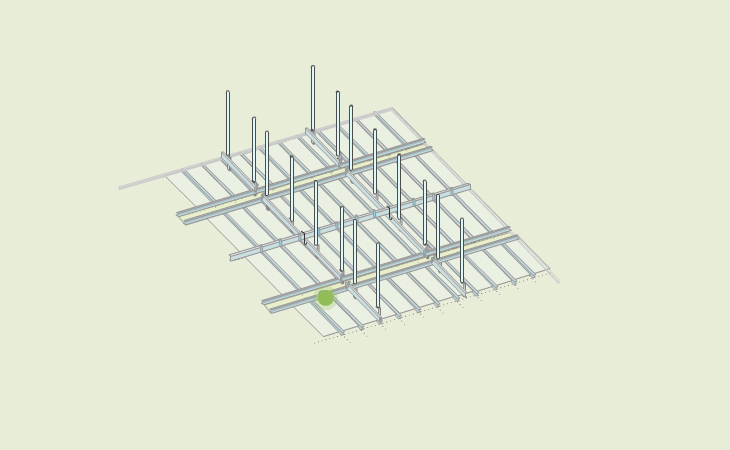

    • Install in order of [H-bar+Systone]+[H-bar+Systone]. Use Systone exclusive H-Bar.
      Install in order of [H-bar+Systone]+[H-bar+Systone]. Use Systone exclusive H-Bar.
