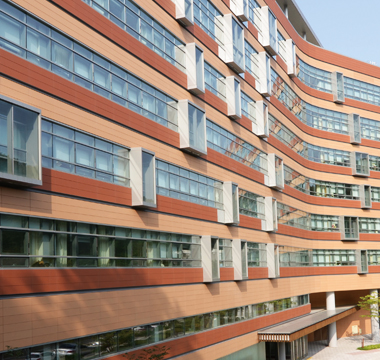

    • Terasolid
    • Terasolid
    • Terasolid
    Introduction
    Terasolid is strong in impact as baking pure clay without harmful chemicals with temperature of 1200℃ or higher, has no discoloration, contraction expansion, distortion of panel, and provides modern and dignifying design as its color and texture are natural and well harmonized with metal and concrete exterior systems.
    Features
    • Durability

      Strong in impact as baked in temperature
      of 1200℃ or higher.

      Durability
    • Environmental Feasibility

      Eco-friendly product made by pure clay.

      Environmental Feasibility
    • Design

      Well harmonized with artificial exterior
      system i.e. metal, concrete, and
      available to create space with various colors.

      Design
    • Stability

      No change or distortion after construction
      as fire processed.

      Stability
    • Processability

      Less effect by season during construction
      with Open Joint dry construction method.

      Processability
    • Maintenance

      Simple panel replacement, no silicon
      contamination and easy surface
      cleaning.

      Maintenance
    • System

      Excellent processability and durability
      with patented stainless subsidiary materials.

      System
    • Non-flammability

      Delay fire expansion with noncombustible
      materials.

      Non-flammability
    Construction Cases

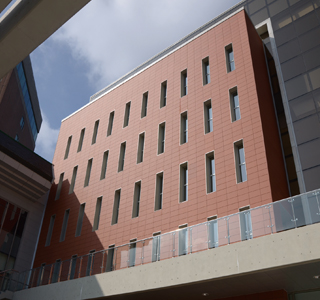

    Yangje-dong Education Culture Center Yangje-dong Education Culture Center

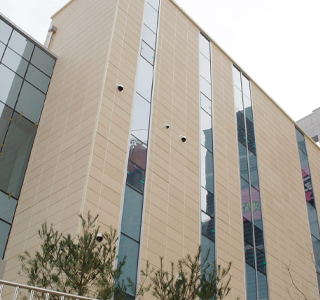

    Gwanggyo KT Gwanggyo KT

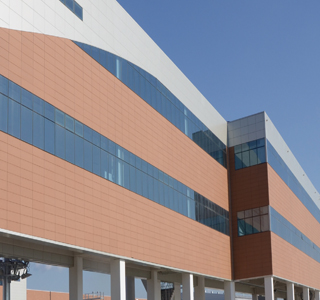

    Busan Bus Terminal Busan Bus Terminal

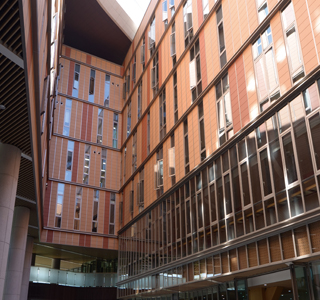

    Seoul Women’s University Seoul Women’s University

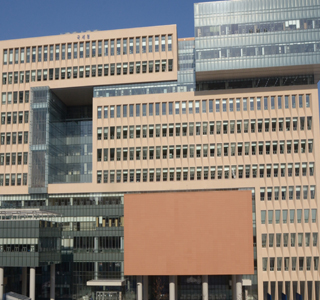

    Public Tax Office, Sejong Public Tax Office, Sejong

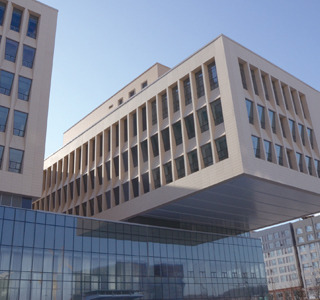

    The National Audio Visual Information Service, Sejong The National Audio Visual Information Service, Sejong

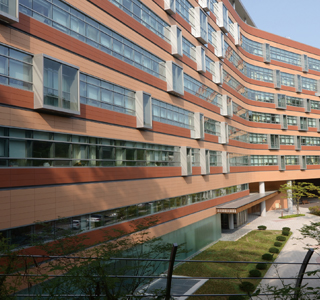

    Seoul National University Bundang Hospital-1 Seoul National University Bundang Hospital-1

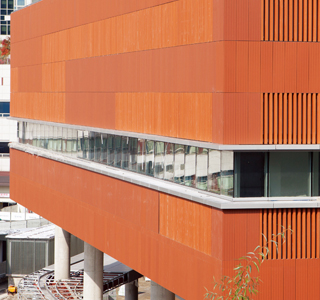

    Seoul National University Bundang Hospital-2 Seoul National University Bundang Hospital-2
    Seoul National University Bundang Hospital-3 Seoul National University Bundang Hospital-3

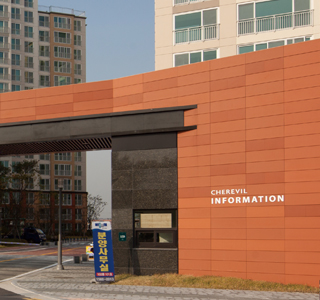

    Samsung Cherevil, Yongin Samsung Cherevil, Yongin
    Hanshin Officetel(Multi-purpose building, office + hotel), Sejong Hanshin Officetel(Multi-purpose building, office + hotel), Sejong

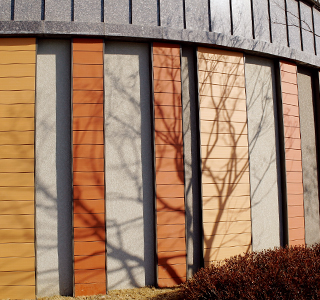

    Samsung Remian Apartment Samsung Remian Apartment
    Bundang Nursery Bundang Nursery

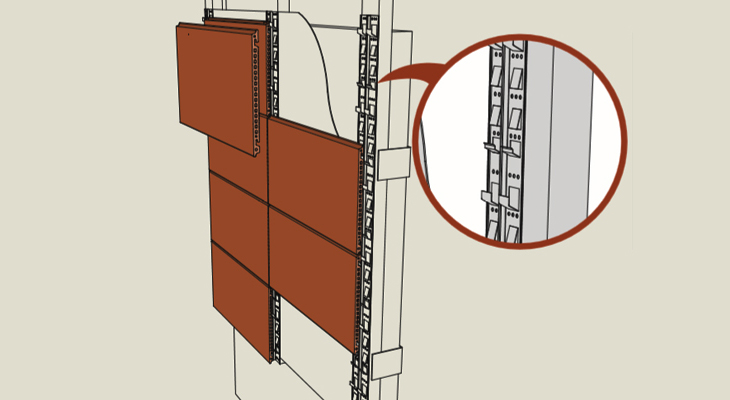

    Terasolid System
    TERASOLID의시스템
    Terasolid system is an epoch-making patent system of stainless hardware system that could shorten construction period and reduce construction expenses by installing stainless clip.
    ※ Patent No.10-1334320 [Teracotta panel Fixture of Building]
    Color
    • Lighr Red
      Light Red
    • Spain
      Spain Red
    • Burgundy
      Burgundy
    • Light Sandy
      Light Sandy
    • Cappuccino
      Cappuccino
    • Chocolate
      Chocolate
    • Gray
      Gray

    ※ The colors above may be different from the actual colors.
    ※ Please contact the sales staff for the other colors.

    Size of Terasolid
    (Unit : mm)
    Part Name Size Thickness (T) Height
    Width (H)    		 Length Shape
    TERASOLID FLAT 16 16 200
    300
    400    		 600
    900
    1,200
    FLAT 20 20 200
    300
    400
    FLAT 24 24 200
    300
    400    		 FLAT 24
    TRENCH 16 16 200
    300
    400    		 TRENCH 16
    TRENCH 20 20 200
    300
    400    		 TRENCH 20
    TRENCH 24 24 200
    300
    400    		 TRENCH 24
    ※ Please contact the person in charge as Terasolid may have a color difference depending on the size.
    Item Unit Specific Standard
    Water Absorption Rate 3% < E < 6% (Unglazed Tiles, except glazed tiles) ISO 10545-3 / EN99 / KS L 1001
    Fracture Strength 100N/cm or higher KS L 1001
    Breaking Strength Higher than 2.5kn ISO 10545-4
    Bending Breaking Load Higher 2,500N KS F 3510
    Abrasion Resistance lower than 393㎟ (Unglazed Tiles) ISO 10545-6 / EN154
    0.1g or lower KS L 1001
    Resistance to Thermal Shock Impact Resistant ISO 10545-9 / EN104
    Moisture Expansion 0.06% or lower ISO 10545-10
    Frost Resistance Resistant ISO 10545-12 / EN202 / KS L 1001
    Stain Resistance Resistant ISO 10545-14 / EN122
    Acid Resistance N/A KS L 1001 / ISO 10545-13
    Alkali Resistance N/A KS L 1001 / ISO 10545-13

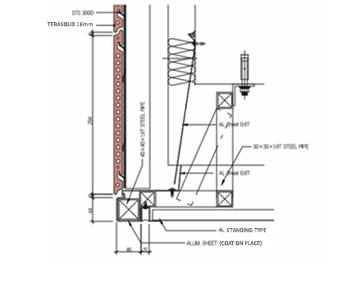

    Detailed Drawing of Terasolid

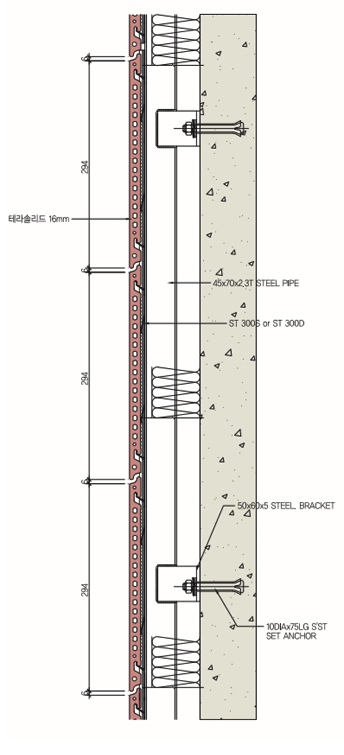

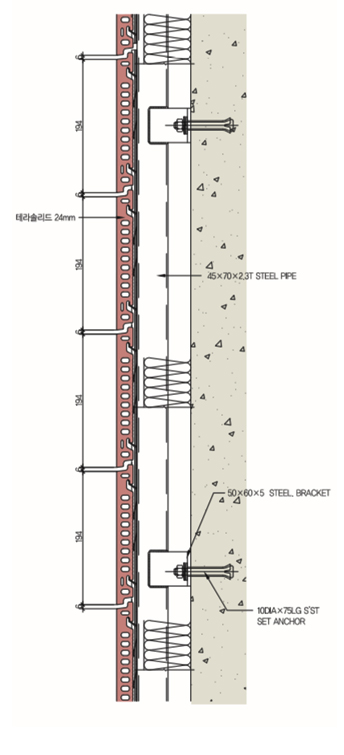

    • Detailed Drawing of Cross Section (STS 300 construction method)
    • Detailed Drawing of Window Cross Section(STS 200 construction method)

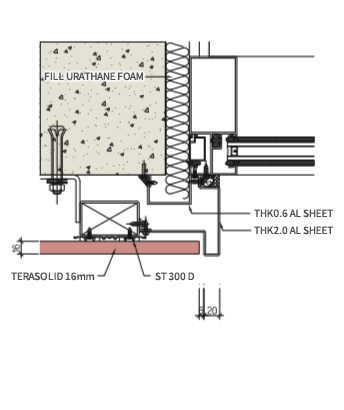

    • Detailed Drawing of Window Cross Section

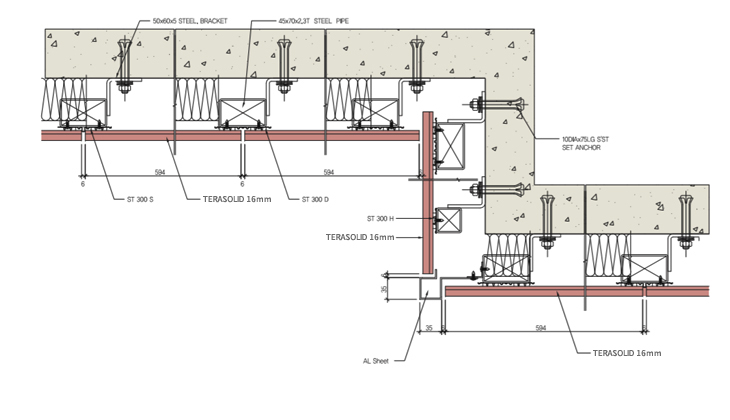

    • Detailed Drawing of Floor Plan
    • Detailed Drawing of Floor Plan

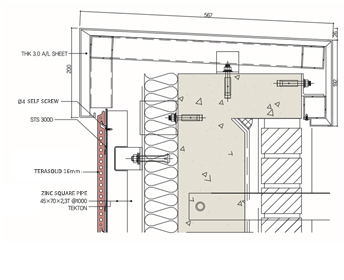

    • Detailed Drawing of Parapet Cross Section

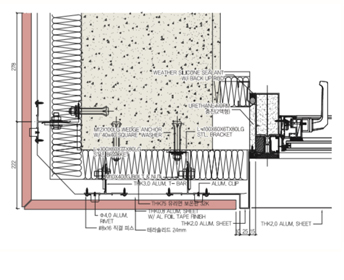

    • Detailed Drawing of Bottom of Exterior wall
    • Detailed Drawing of Flat Surface (Size board installed)
    • Detailed Drawing of Floor Plan for Different Material Connection
    • Detailed Drawing of Top Floor Plan for Projecting Parts
    • Detailed Drawing of Bottom Floor Plan for Projecting Parts
    ※ The specification of subsidiary hardwares may be changed depending on the site conditions.
