- Introduction
-

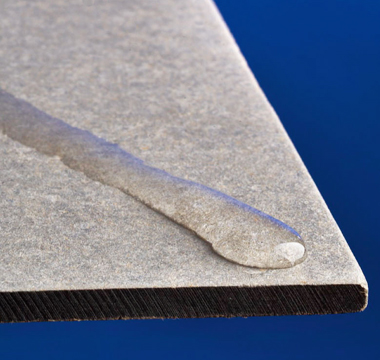

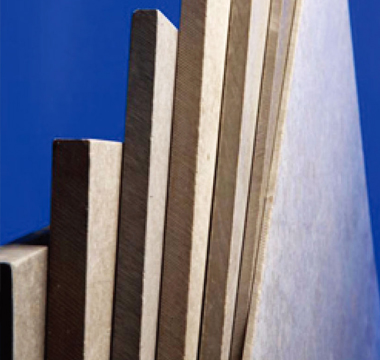

What is CRC Board (Cellulose fiber Reinforced Cement Board)?
CRC Board is noninflammable (Incombustibility Grade 1) construction material produced by mixing cellulose fiber that is the natural pulp, Portland cement, silica and water, and pressurize with 10,000 tons, then have autoclave curing.
Non-asbestos eco-friendly construction material with less length change by temperature deviation, water resistance and non-flammability (Incombustibility Grade 1). - Application
- Humid areas i.e. bathroom, kitchen, basement cutoff collar, partition, exit between houses, house inner wall, non-extended balcony wall, inner wall between houses
- Features
-
-
Non-flammability
Main ingredient is non-organic Portland
cement, which is non-flammable
(Incombustibility Grade 1) material.
-
Processability
Easy construction with dry construction
method.
-
Water Resistance
Available to apply to humid area with
less length change by water absorption
and excellent water resistance.
-
Processability
Available to improve usage of product
after secondary processing with
various methods.
-
Mothproof
Strong chemical resistance, prevents
insect intrusion.
-
Economic Feasibility
Available to shorten construction
period with easy construction,
reduce construction/structural
expenses with comparatively
light weight.
-
Impact Resistance
High strength and impact resistance
after autoclave curing with main
ingredients of Portland cement and
silica.
-
Finishing
Available for finishing of painting,
wallpaper, tile, interior film adhesion
with excellent smoothness,
water resistance and high density.
-
Non-flammability
- Size
-
Size 900 X 1800 900 X 2400 1200 X 2400 900 X 2700 4.5mm 10kg 13kg 18kg 15kg 6mm 13kg 17kg 24kg - 9mm 20kg 26kg 36kg - 12mm 26kg 35kg 48kg - ※ Order production of other sizes is available.
※ Weight is based on 1 sheet, and may differ by the product.
| Item | Unit | Specific Standard |
|---|---|---|
| Bulk specific gravity | % | 1.0 or higher |
| Flexural Strength | N/㎣ | 13 or higher |
| Length Change Rate by Absorption | % | 0.15 or lower |
| Thermal Conductivity | W/m·K | 0.24 or lower |
| Flame Resistance Grade | Noninflammable (Incombustibility Grade 1) |
※ Properties may differ by the product.
- Construction Method of CRC Board
-
-

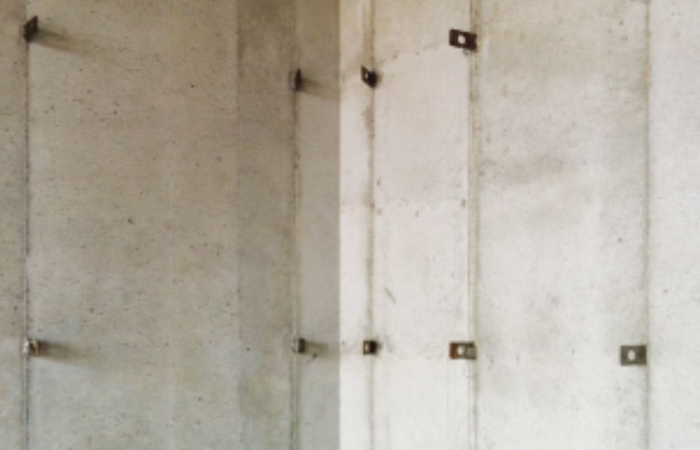

1.바탕벽 정리하기 - 콘크리트 옹벽을 깨끗하게 정리합니다.
-

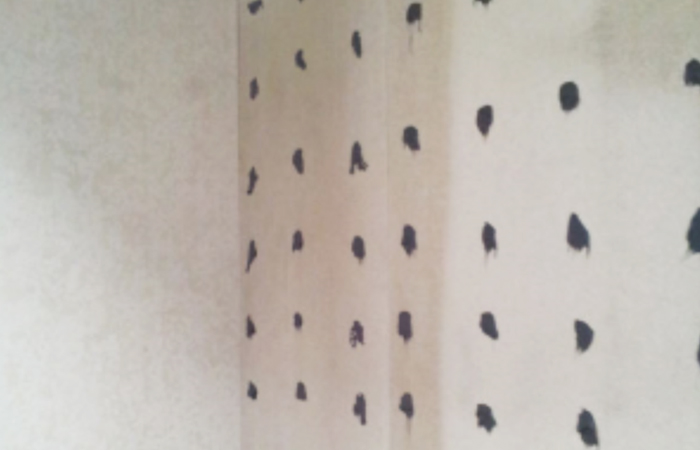

2. 본드칠하기 - 바탕벽에 G2 또는 석고본드를 30cm 간격, 소요두께(5mm)의 3배, 직경 50mm로 바릅니다.
-

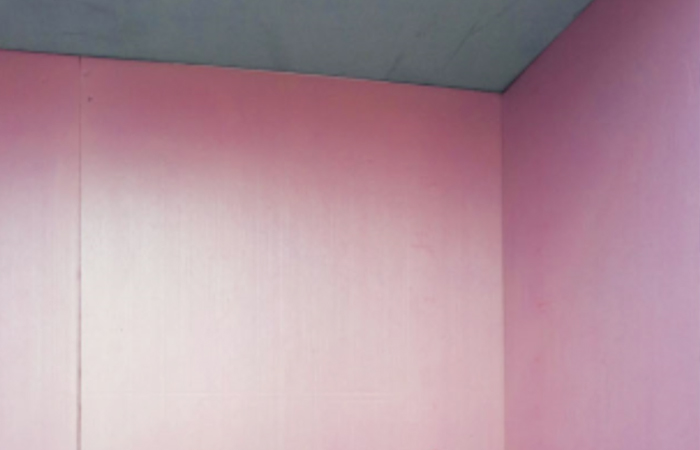

3. 단열재 붙이기 - 본드를 바른 후 30분 이내에 단열재(아이소핑크)를 손으로 가볍게 눌러 수평을 맞추어 부착.
-

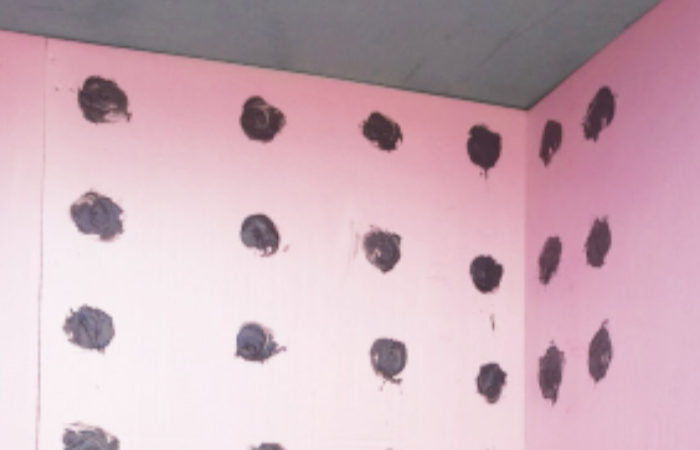

4. 본드 칠하기(단열재) - 단열재 위에 G2 또는 석고본드를 30cm 간격, 적당한 두께로 다시 바릅니다.
-

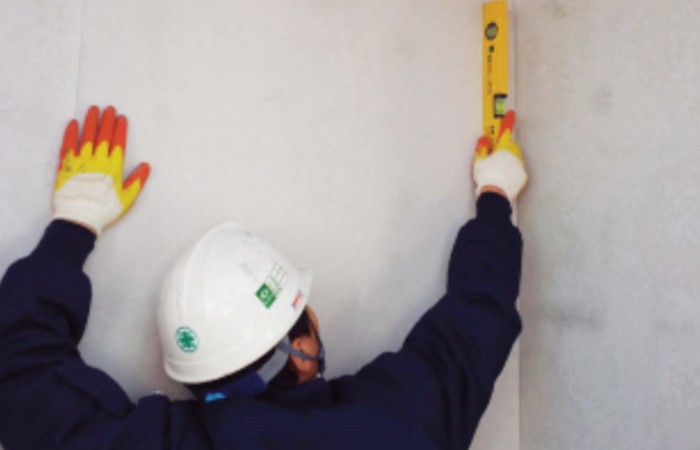

5. CRC보드 붙이기 - 가볍게 눌러 수평을 맞추어 부착 후 탈락방지를 위해 고정못으로 고정 24시간 정도 양생
-

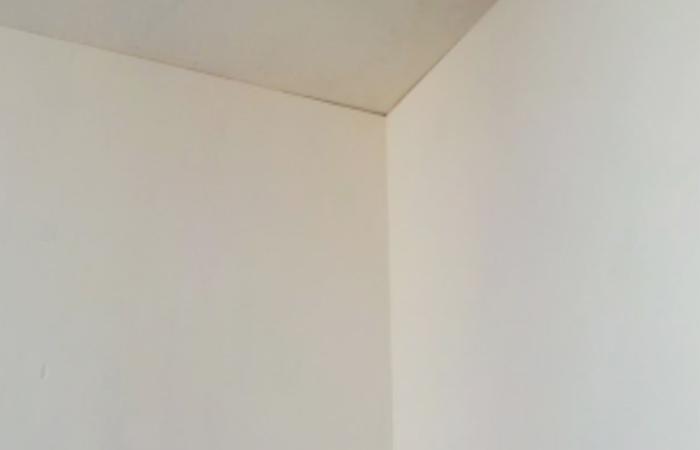

6. 마무리작업 - CRC보드 벽체 및 천장이 완성되었습니다, 도배나 페인트, 타일 등으로 마무리 하시면 됩니다.
-
-
-
Bathroom Inner Wall (Dry)
-
House Inner Wall
-
Wall Between Houses
-
Kitchen and Sub-Kitchen (Wet)
-
Balcony Wall (Wet)
-
