- Glass Wool for Exterior Insulation, Strong in Humidity by Improving Water Repellency
-
- Product Inquiry : (+82) 02-2260-6247
- E-mail : wlstlr@bsco.co.kr
- Export Inquiry : (+82) 02-2260-6078
- E-mail : esther711@bsco.co.kr
- Design Inquiry : (+82) 02-2260-6263
- E-mail : grkim@bsco.co.kr
- Introduction
- Byucksan Glass Wool Water-Free is developed to minimize heat loss as non-organic insulation system exclusive for exterior insulation which minimized absorption and penetration during dry outer wall construction by improving water repellency of the previous Glass Wool product.
- Certificates
-
- Application
- Outer wall, ceiling of building, Piloti ceiling
- Features
-
-
Water Repellency
Prevent insulation feasibility decline
due to external moisture by adding
water repellent to Glass Wool.
-
Water Absorption
Product safe from moisture exposure
as satisfying KS L 9102 standard of
short/long-term absorptiveness.
-
Insulation
Available to maintain heat and insulation
effects 40 times more than cement
concrete, 12 times more of soil wall,
and to save cooling/heating expenses
as including much air within product.
-
Eco-Friendliness
Construction material with almost
no pollutant emission i.e. formaldehyde,
and acquired ‘Grade 1’ of healthy
building material.
-
Reusability
Practice resource saving, carbon dioxide
reduction, energy saving by recycling
90% or more of waste glass, the main
raw material.
-
Non-flammability
Minimize damage during fire as
non-flammable material manufactured
with non-organic material.
-
Water Repellency

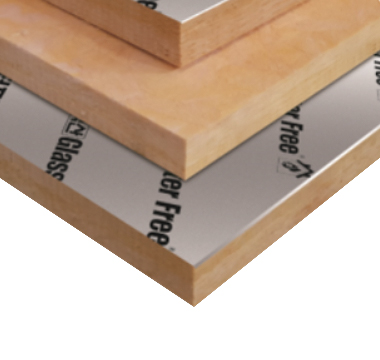

- Glass Wool Water-Free
-
| Item | Density (K) | Thermal Conductivity (W/mㆍk) | Thickness(㎜) | Standard Size(㎜) | |||
|---|---|---|---|---|---|---|---|
| Byucksan Co., Ltd. | KS Standard | Minimum | Maximum | Width | Length | ||
| Water-Free Plus | 48 | 0.031 | 0.034 | 50 | 180 | 1000 | 2000 |
| 40 | 0.032 | 0.035 | 50 | 215 | 1000 | 2000 | |
| 32 | 0.032 | 0.036 | 50 | 250 | 1000 | 2000 | |
| Water-Free | 48 | 0.033 | 0.034 | 50 | 180 | 1000 | 2000 |
| 40 | 0.034 | 0.035 | 50 | 215 | 1000 | 2000 | |
※ Properties Standard : KS L 9102
※ Please contact the sales staff for the other special-size production.

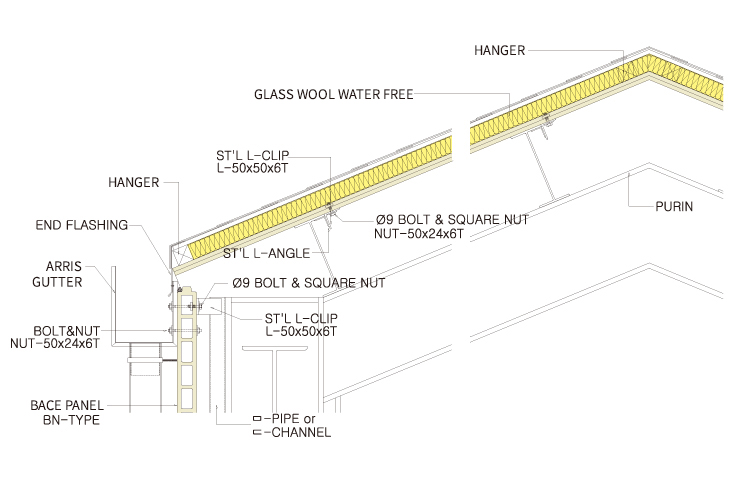

- Install on Ceiling
-
-

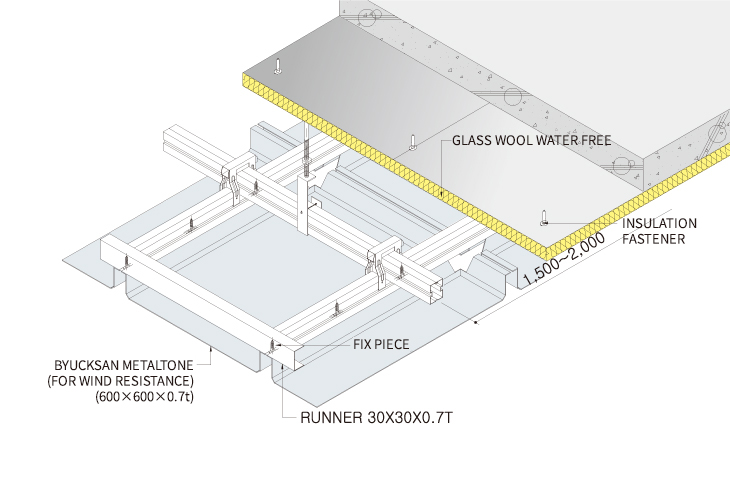

- Install on Piloti Ceiling
-
-

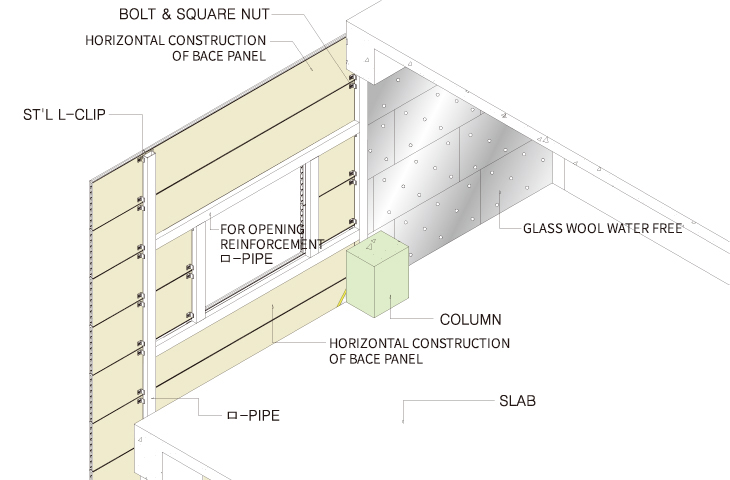

- Install on Wall
-
-
- Outer Wall Insulation Construction Order
-
-
01. Set base line/Drilling -
02. Install bottom track (wall plug) -
03. Set Water-Free position -
04. Fix fastener (fastening tool) -
05. Process Water-Free breaking joint
-
06. Fix joint fastener
-
07. Construct joint silver tape
-
08. Construction completed
※ When fixing Glass Wool Water-Free fastener, it is recommended to have 8ea/2㎡ or more. (Wall basis)
-
