- Heat, Insulation, Cool, Sound Absorption Insulation System for Construction Industry and Household Produced with Rotation Method for First Time in Korea
-
- Product Inquiry : (+82) 02-2260-6247
- E-mail : wlstlr@bsco.co.kr
- Export Inquiry : (+82) 02-2260-6078
- E-mail : esther711@bsco.co.kr
- Design Inquiry : (+82) 02-2260-6263
- E-mail : grkim@bsco.co.kr

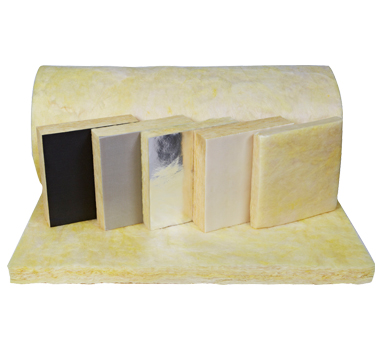

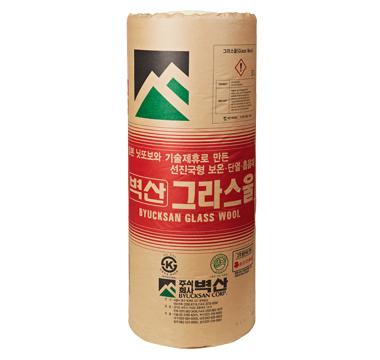

- Introduction
-
Byucksan Glass Wool is a heating, insulating, cooling, sound absorbing exclusive product for construction industry and households produced with the rotation method which is developed by Byucksan, the eco-friendly construction material company, for the first time in Korea. It helps more economical and convenient construction.
Especially, it is eco-friendly construction material which reduced formaldehyde emission unbelievably, and appropriate to F☆☆☆☆ standard, the best grade of construction material formaldehyde emission relates of Ministry of Economy, Trade and Industry of Japan and Japanese Industrial Standards. - Certificates
-
- Application
- For houses (ceiling, wall, floor), general construction, industry
- Features
-
-
Heat Insulation
Available to maintain heat and insulation
effects 40 times more than cement
concrete, 12 times more of soil wall,
and to save cooling/heating expenses
as including much air within product.
-
Sound Absorption, Elasticity
Provide quiet and cozy residing
environment by blocking external noises
with excellent sound absorption,
and protect construction safely from
shock or vibration with strong elasticity.
-
Economic Feasibility, Tensile Strength
Convenient storage and delivery with
compressed packing, available to
reduce construction expenses with
reducing construction time and maintain
excellent processability and
inner-direction with high tensile strength.
-
Diversity
Available to choose various products
i.e. mat, board, etc. depending on special
usage i.e. wall, floor, ceiling of building,
pipe heating, automobile, vessel, etc.
-
Eco-Friendly
Hold eco-friendly related official
certificates i.e. healthy building material,
environment mark, GR certificate, etc.,
and excellent in prevention of sick
house syndrome by minimizing
contaminant emission i.e. HCHO,
TVOC, etc. by using recycled raw
materials like waste glass.
-
Non-flammability
Safe with less glass spikes, reduce
casualties to a minimum in the event
of a fire with non-flammability and
fireproof functions as well as water
resistance.
-
Heat Insulation

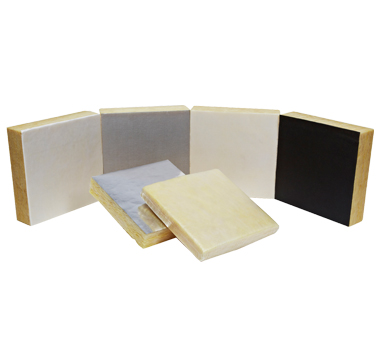

- Glass Wool Board
- Application
-
- General construction, for panel core, building, automobile, vessel, sound facility, etc.
- Board Size and Properties
-
Product No. Density
(kg/㎡)Standard Size Thermal Conductivity W/m·k Heat
Shrinking Temp
(℃)Related Standard
(KS)Thickness
(mm)Width
(m)Length
(m)KS Standard 20±5℃ BGM - 32 32 50 1 2 0.036 or lower 300 or higher L 9102
(2011)BGM - 40 40 50 1 2 0.035 or lower 350 or higher BGM - 48 48 50 1 2 0.034 or lower BGM - 64 64 50 1 2 0.034 or lower 400 or higher BGM - 80 80 50 1 2 0.034 or lower ※ For other special size and products with attachment, order production is available upon agreement on production availability.
※ Attachment : Silver foil, PVC, etc.

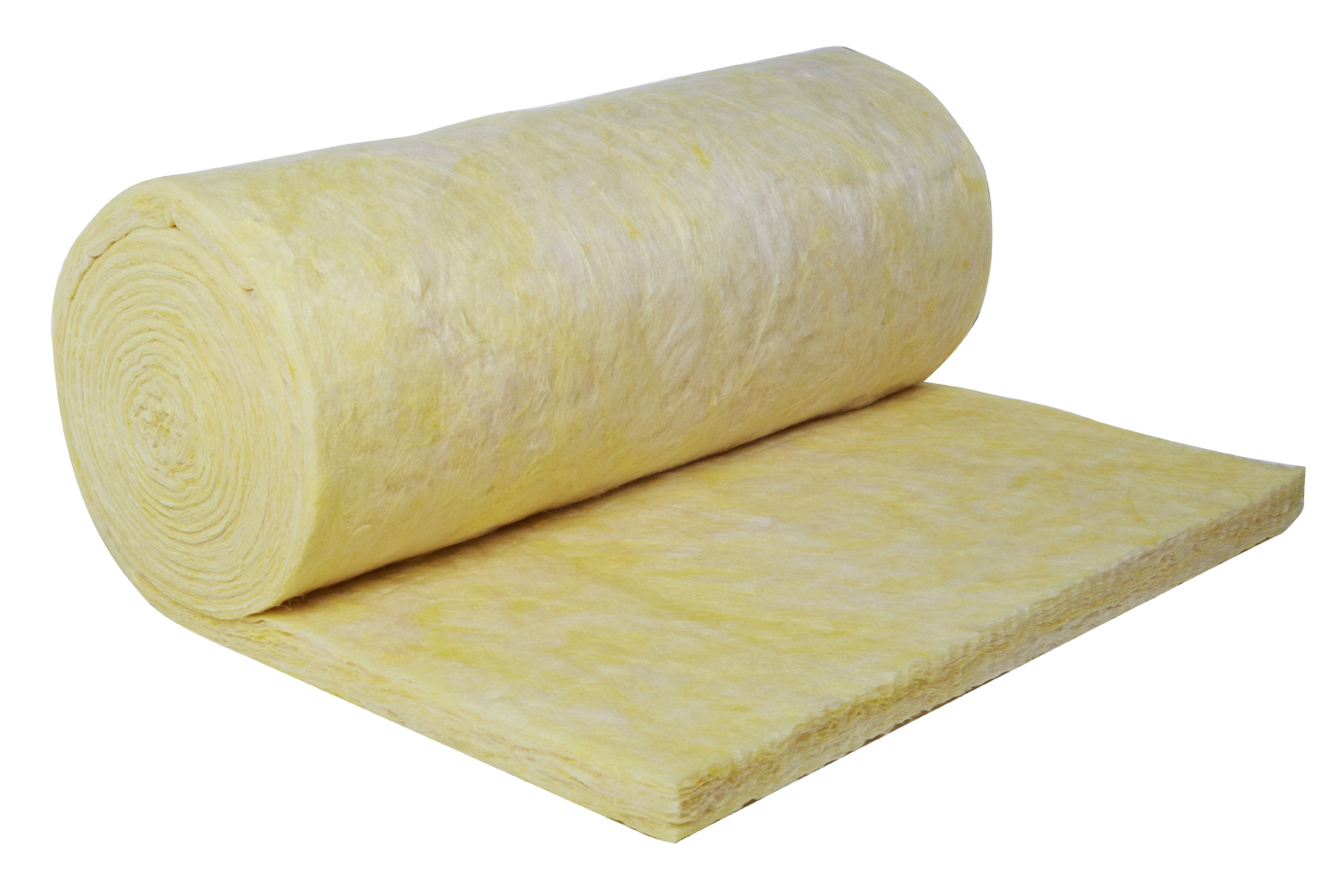

- Glass Wool Mat
-
- Application
-
- For houses (ceiling, wall, floor)/general construction, PC
- Mat Size and Properties
-
Product No. Density
(kg/㎡)Standard Size Thermal Conductivity W/m·k Heat
Shrinking Temp.
(℃)Related Standard
(KS)Thickness
(mm)Width
(m)Length
(m)KS Standard 20±5℃ BGM - 24 24 25 1 20 0.037 or lower 300 or higher L 9102
(2011)50 1 10 BGM - 32 32 50 1 10 0.036 or lower 300 or higher L 9102
(2011)※ For other special size and products with attachment, order production is available upon agreement on production availability.
※ Attachment : Silver foil, PVC, etc.

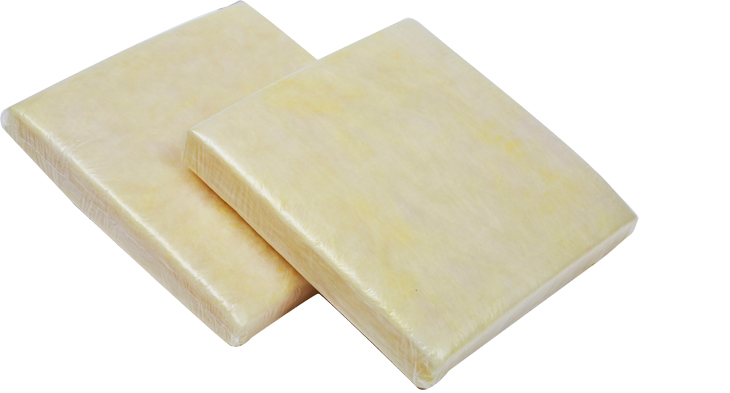

- Free Mat Board
-
-
Sealed Product
Product sealed after covering with polyethylene vinyl to general mat board product.
- Features
-
- Convenient handling of handler (eco-friendly)
- Prevent humidity while constructing outer wall
- Attached product and vinyl, convenient to construct as vinyl is not separated from the product during construction or cutting
- Application
-
- Apartment wall, insulation of general building
- Mat Size and Properties
-
Mat Size and Properties For Boards For Roll Products Size Width (mm) 900 ~ 1200 900 ~ 1200 Width (mm) 900 ~ 3000 5000 ~ 20000 Thickness (mm) 25 ~ 150 25 ~ 1500 Density (kg/㎥) 24 ~ 32 16 ~ 24 Size after Compression - 430 Ø Vinyl Wrap Vinyle Specification 0.02mm 0.03mm Type 4-side sealing, 6-side sealing 4-side sealing, 6-side sealing Thermal
Conductivity
(20±5℃)W/㎡·K 0.034 ~0.037 0.034 ~0.044 ※ For other special size and products with attachment, order production is available upon agreement on production availability.

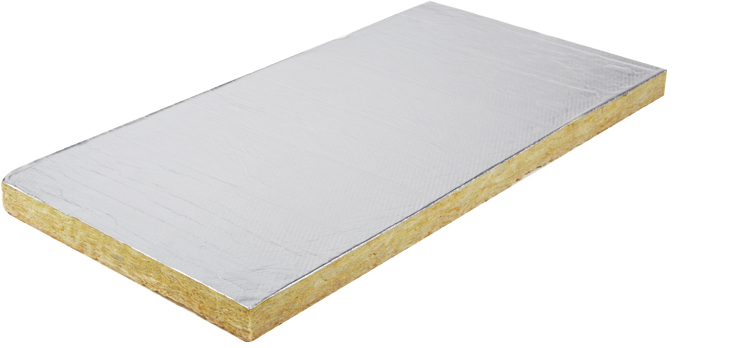

- G/C Board
-
-
Low Noise/Insulation Product
Product which attached glass cloth on one side of Glass Wool Board to reduce noises from sound facility, cinema, gym, maintenance room, etc.
- Application
-
- Place which requires considerable sound function and insulation Used as interior system of (factory, machinery room, computer room, sound room, telephone operating room, gym, assembly room, etc.)
- Construction Method
-
- Mark line on the wall where G/C Board will be constructed to fit to G/C Board size.
- Mark position to attach fixing pin (support pin) on the wall where G/C Board will be constructed.
- Attach fixing pin (support pin) on the marked position on the wall with adhesive. (Wait 24 hours until adhesive dries completely, then install them after 24 hours.)
- When adhesive dries completely, insert G/C Board to fixing pin align with the marked line on the wall.
- Insert washer to tip of support pin.
- Board Size and Properties
-
Thickness (mm) Width/Length (mm) Density(kg/㎥) NRC(48K basis) 25 ~ 100 1000 X 2000 48 / 64 / 80 0.81 or higher ※ For other special size and with attachment, order production is available upon agreement on production availability.
- Glass Wool Panel
(Panel Core material) -
-
Noninflammable/Insulating Sandwich Panel (Panel Core Material)
Fibrosis silica (sand) which is the raw material for glass by using high temperature hot-dip and high-speed rotation, and use as heating, insulation and sound absorption materials as creating fine continuous pore with artificial mineral fiber formed in a consistent form. Non-flammable panel available for fireproof structural construction with no toxic gas generation during fire and almost no fire expansion.
- Application
-
- Big-size mart, house/commercial/residence
- Factory/Storage, all buildings with fireproof area and danger of fire
-
- Board Size and Properties
-
Density
(kg/㎥)Standard Size Thermal Conductivity W/m·k Heat
Shrinking Temp.
(℃)Related Standard
(KS)Thickness
(mm)Width
(m)Length
(m)KS Standard 20±5℃ 48 72
84
1001
1.12
2.50.034 or lower 350 or higher L 9102
(2011)64 72
84
1001
1.12
2.50.034 or lower 400 or higher 70 72
84
1001
1.12
2.50.034 or lower ※ For other special size and with attachment, order production is available upon agreement on production availability.

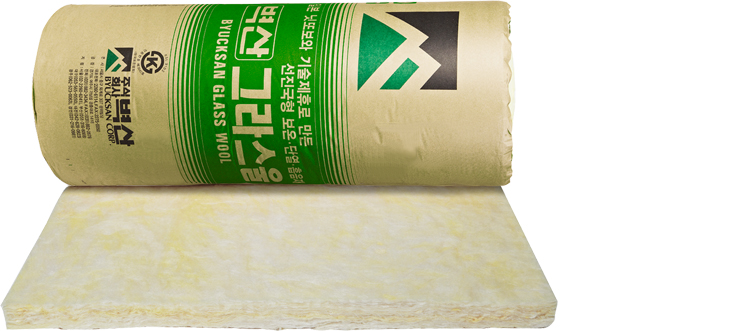

- Glass Wool Eco
-
-
Eco-Friendly Glass Wool without Formaldehyde Emission
Glass Wool Eco provides clean air quality and refreshing environment as eco-friendly product without formaldehyde (HCHO) emission, which is internal air pollutant.
-
HB Mark HCHO (Formaldehyde) Emission Standard Excellent HB ♧♧♧♧♧ Less than 0.015 Great HB ♧♧♧♧ 0.015 ~ 0.05 Glass Wool Eco Not detected ※ (Unit:mg/㎡h)
- Application
-
- For houses (ceiling, wall, floor)
- General construction
-
- Mat Size and Properties
-
Product No. Product No.
(kg/㎡)Standard Size Thermal Conductivity W/m·k Heat
Shrinking Temp.
(℃)Related Standard
(KS)Thickness
(mm)Width
(m)Length
(m)KS Standard 20±5℃ BGM - 24 24 35 1 20 0.037 or lower 300 or higher L 9102
(2011)50 1 10 BGM - 32 32 50 1 10 0.036 or lower 300 or higher L 9102
(2011)※ For other special size and products with attachment, order production is available upon agreement on production availability.
- Glass Wool
Construction Method
(General Case) -
-
Concrete Block Bearing Wall
-
Brick and Block Double Wall
-
Precast Concrete Plate
-
Metal and Glass Curtain Wall
-
Wall/Ceiling Attachment Detail
-
Floor/Baseboard/Wall Attachment Detail
-
