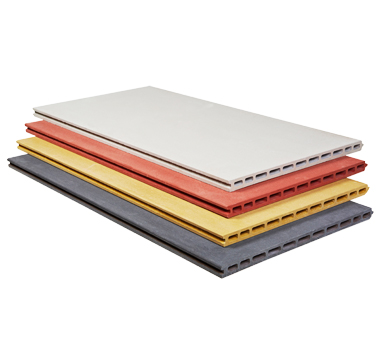

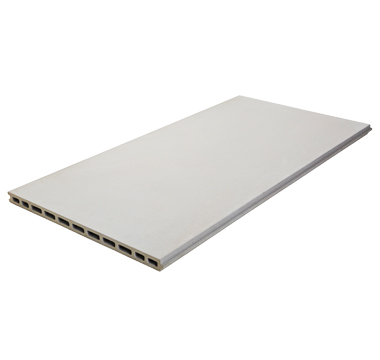

    Introduction
    BACE is abbreviation of Byucksan Autoclaved Cement Extrusion, which is the assembly type panel with light but high strength, and beautiful surface by extrusion molding cement as the main raw material, and steam curing under high temperature (180℃) and high pressure (10 atm).
    Certificates
    Mark001 Mark003 4735
    Application
    For construction : Intelligent buildings i.e. exterior wall, interior wall, floor, partition, stairs, etc. of building
    For sound insulation : Reflective sound insulation plate for expressway, national highway, railway
    Features
    • Durability

      Excellent and strong durability, non-fusion.

      Durability
    • Design

      Available to diversify panel surface
      depending on the appearance of
      building.

      Design
    • Lightness

      Only weigh 40kg~60kg per m2, and
      available to reduce structural
      expenses of building.

      Lightness
    • Finishing

      Available of free finishing i.e. bonntile,
      paint, etc.

      Finishing
    • Stability

      Less contraction, expansion,
      distortion after construction with
      high-pressure steam curing.

      Stability
    • Quake proof

      Absorbs shock from earthquake
      with ideal assembly method
      construction.

      Quake proof
    • Non-flammability

      Excellent in preventing fire expansion
      with excellent non-flammability.

      Non-flammability
    • Environmental Feasibility

      Non-asbestos product considering
      both nature and humanity.

      Environmental Feasibility
    Construction Cases

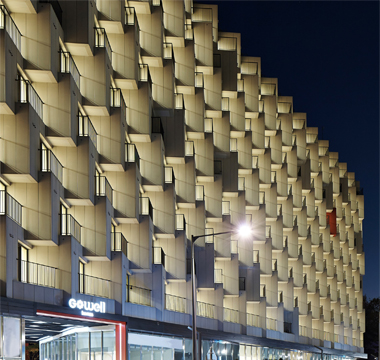

    Gangnam G-well Homes Gangnam G-well Homes

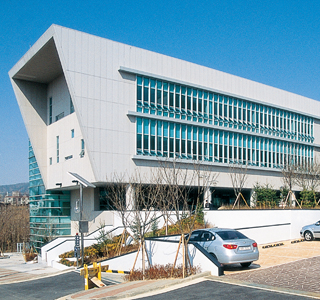

    Incheon Municipal Library Incheon Municipal Library

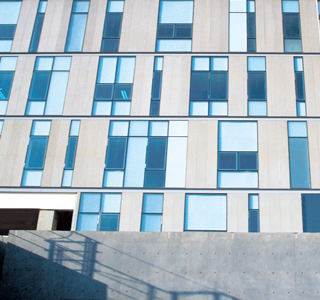

    Bundang Police Office Bundang Police Office
    Student Union, Soongsil University Student Union, Soongsil University

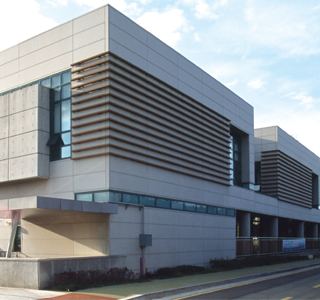

    Gangnam Suseo Vocational Rehabilitation Centers for the Handicapped People Gangnam Suseo Vocational Rehabilitation Centers for the Handicapped People

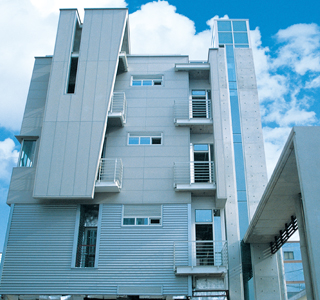

    Juan 6-dong Community Service Center Juan 6-dong Community Service Center

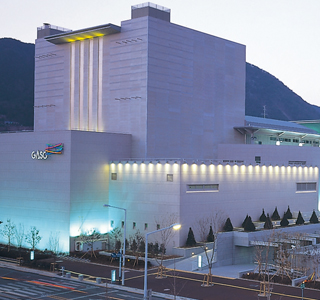

    Gimhae Arts and Sports Center Gimhae Arts and Sports Center

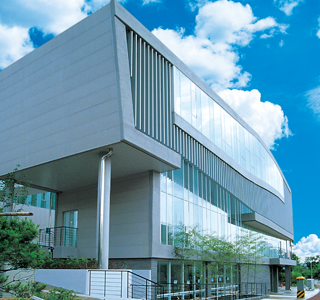

    Pung-dong Library Pung-dong Library

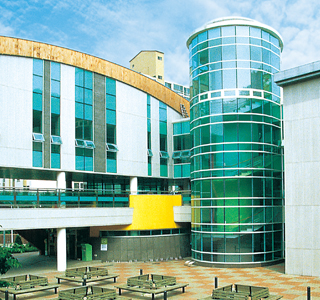

    Gunpo Municipal Children’s Library Gunpo Municipal Children’s Library

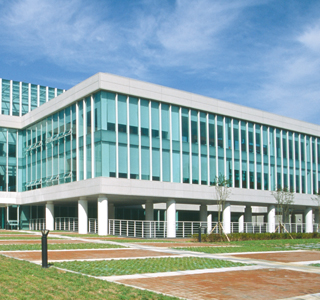

    Graduate School of Theology, Hanshin University Graduate School of Theology, Hanshin University

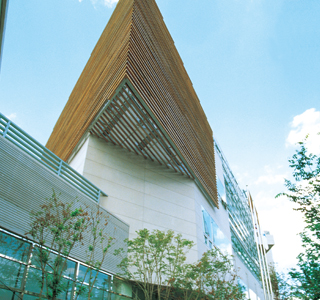

    Seongbuk Water Supply Office Seongbuk Water Supply Office
    Daewon Girls’ High School Daewon Girls’ High School

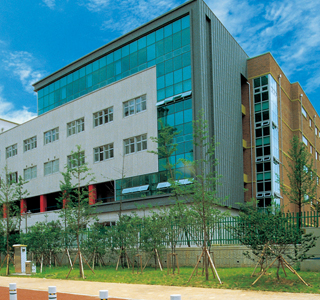

    Gimpo Janggi Elementary School Gimpo Janggi Elementary School

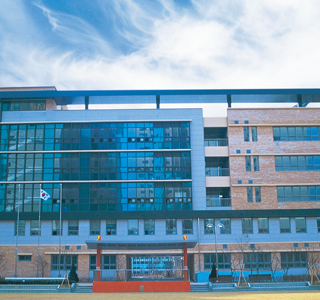

    Incheon Jeonggak Middle School Incheon Jeonggak Middle School

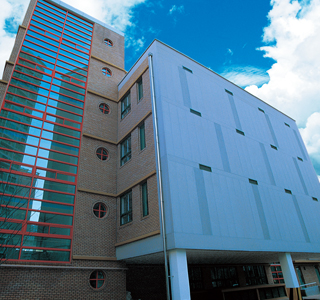

    Incheon Gyeongwon Elementary School Incheon Gyeongwon Elementary School

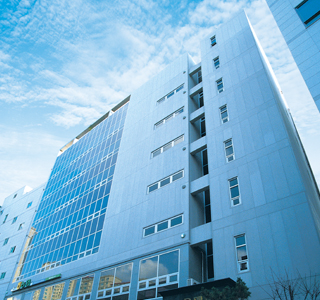

    Dongtan P&P Medical Center Dongtan P&P Medical Center

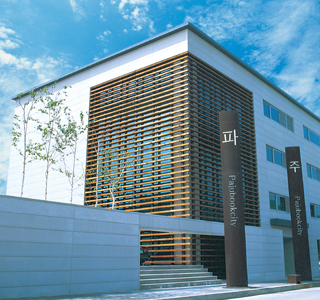

    Paju KSI Co., Ltd. Paju KSI Co., Ltd.

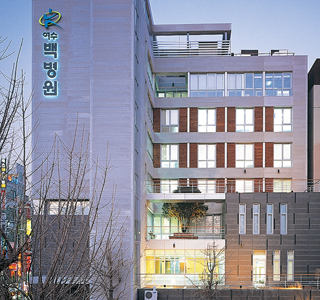

    Yeosu Paik Hospital Yeosu Paik Hospital

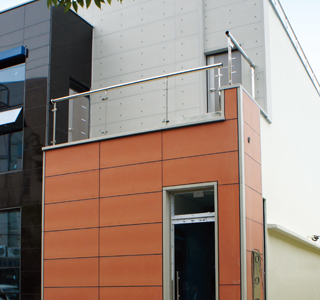

    Hyoja-dong neighborhood living facility, Jeonju Hyoja-dong neighborhood living facility, Jeonju

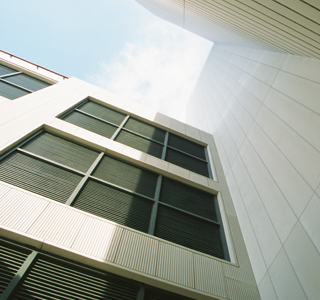

    Data Center, DB Insurance Data Center, DB Insurance

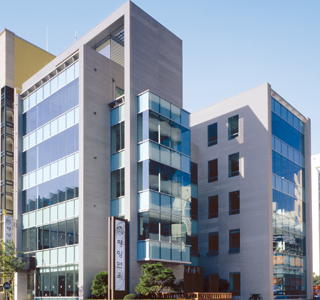

    Nawoo Building Nawoo Building

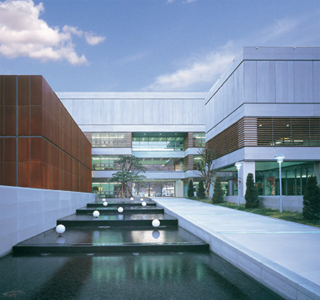

    Simone Company Building Simone Company Building

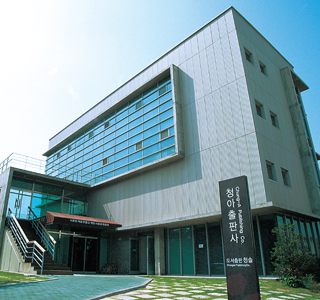

    Chunga Books, Paju Chunga Books, Paju

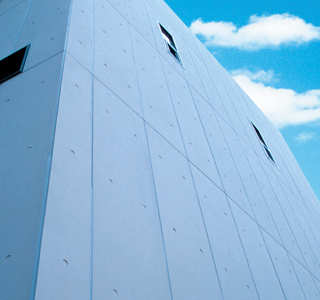

    Bulro-dong neighborhood living facility, Daegu Bulro-dong neighborhood living facility, Daegu

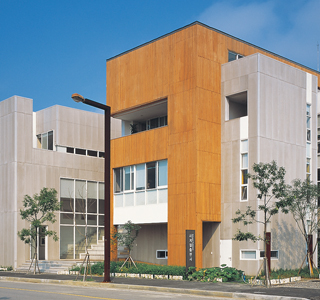

    Sakyejul Publishing Sakyejul Publishing
    Wave Electronics, Suwon Wave Electronics, Suwon
    Euiwang SDA Euiwang SDA
    Shinsa-dong Yehwarang Shinsa-dong Yehwarang

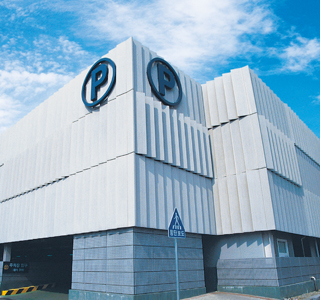

    Parking lots, Aju University Hospital Parking lots, Aju University Hospital

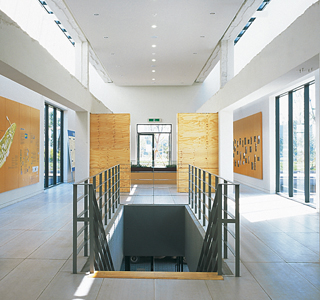

    Floor of Seoul Sunyudo Park Exhibition Hall Floor of Seoul Sunyudo Park Exhibition Hall
    Residence in Seongbuk-dong Residence in Seongbuk-dong

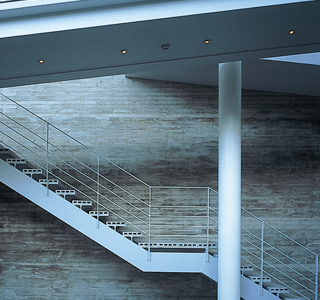

    의재 미술관 바닥 의재 미술관 바닥
    Wondang Full Gospel Church Wondang Full Gospel Church
    Flat Type
    Item Shape of Cross Section Standard Width
    (mm)    		 Maximum Length
    (mm)    		 Weight Application
    kg/m kg/m²
    BN-3550 500 2,700 19.74 40 Exterior/Interior/Floor
    BN-3560 600 2,700 23.12 39 Exterior/Interior/Floor
    BN-5050 500 4,000 24.50 49 Exterior/Interior/Floor
    BN-5060 600 4,000 30.52 51 Exterior/Interior/Floor
    BN-6050 500 5,000 29.50 59 Exterior/Interior
    BN-6060 600 5,000 33.70 56 Exterior/Interior
    Stripe Type
    Item Shape of Cross Section Standard Width
    (mm)    		 Maximum Length
    (mm)    		 Weight Application
    kg/m kg/m²
    BNST-5060 600 4,000 29.40 49 Exterior/Interior
    Rib Type
    Item Shape of Cross Section Standard Width
    (mm)    		 Maximum Length
    (mm)    		 Weight Application
    kg/m kg/m²
    BNS-5050 500 4,000 29.50 49 Exterior/Interior/Sound Proof Wall
    Pine board patterned BACE panel
    Item Shape of Cross Section Standard Width
    (mm)    		 Maximum Length
    (mm)    		 Weight Application
    kg/m kg/m²
    Pine board patterned(30T) 600 2,400 24.6 41 Exterior/Interior
    BNEX Exposed Concrete Design Panel
    Item Shape
    BNEX-3550
    Producible up to 35T, 50T, maximum length, and available to adjust cone distance and numbers. (*Production upon agreement)
    Shape and size of cone : Ø30 / Ø40mm
    Depth : 3mm
    BNEX-3560
    BNEX-5050
    BNEX-5060
    Corner Type코너형
    Item Shape of Cross Section Standard Width
    (mm)    		 Maximum Length
    (mm)    		 Weight
    kg/m    		 Application
    L-145 60×145 4,000 10.73 Exterior/Interior/Corner/Lintel
    L-190 60×190 4,000 12.70 Exterior/Interior/Corner/Lintel
    L-300 60×292 4,000 17.50 Exterior/Interior/Corner/Lintel/Top beam/Stair
    L-430 60×430 5,000 25.00 Exterior/Interior/Corner/Lintel/Top beam/Stair
    L-600 60×592 5,000 35.00 Exterior/Interior/Corner/Lintel/Top beam
    Color Panel
    Item Color
    Flat Type Red, black, yellow (For size and length, additional agreement is required)

    ※ Standard size of BACE panel can be changed without a notice, and may be changed according to the site conditions.
    ※ Please avoid the use on exterior floor where has frequent contact with moisture. (This may cause surface contamination and discoloration.)
    ※ Colors of BACE panel may differ as using natural ores as its raw material.
    ※ Corner type BACE panel is registered to Korean Intellectual Property Office for design, and protected by the “Design Protection Act”.

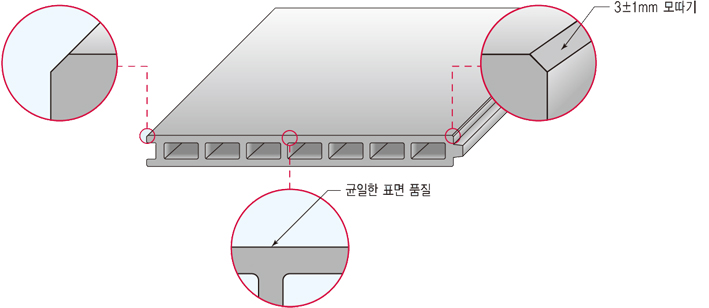

    Features of BACE Panel

    ① Designed to have beautiful space by improving design (appearance design) of product through chamfering of BACE panel corner.

    ② Secure clear and consistent surface through sanding (surface polishing) treatment on BACE panel flat surface.

    Accessories
    • ㅁ-PIPE
      •Size : A×B×t
      •Tolerance : ±0.30 mm
      •Length : 6m
    • L-ANGLE
      •Size : A×B×t
      •Tolerance : ±0.30 mm
      •Length : 10m
    • L-CLIP
      •Size : A×B×t
      •Tolerance : ±0.50 mm
    • Z-CLIP
      •Size : A×B×t
      •Tolerance : ±0.50 mm
    • SQUARE NUT
      •Size : A×B×t
      •Tolerance : ±0.50 mm
    • HEXAGON HEAD BOLT
      •Size : M10×32
      •Tolerance : ±0.50 mm
    • ANCHOR BOLT
      •Size : Ø12
      •Length : 100mm
    Item Test Unit Standard Note
    Weight Specific Gravity g/cm³ 2.0 or lower KS F 4735
    Physical Performance Bending Strength N/mm² 14.0 or higher KS F 4735
    Compressive Strength N/mm² 39.2 or higher —
    Freezing Tolerance Fusion — No delamination or change in appearance KS F 4735
    Water-related Properties Absorption Rate % 18 or lower KS F 4735
    Water Content Rate % 8 or lower —
    Length Change Rate by Absorption % 0.12 or lower KS F 4735
    Sound Blocking Sound Blocking Rw 24 or higher KS F 4735
    Maximum Deflection Amount mm Elasticity deflection : 50 or lower, Permanent Residual Deflection : LA/500 or lower KS F 4735
    Load Carrying Degree kPa Ⅰ(1970mm) : 3.4 or higher
    Ⅱ (3970mm) : 2.8 - 3.4     		KS F 4735
    Impact — No penetration KS F 4735
    Horizontal Installation
    Horizontal Installation Method
    • STEP01
    • STEP02
    • STEP02
    • STEP02
    • STEP03
    • STEP04
    • STEP05
    • 가로시공이 완료되었습니다
    Vertical Installation
    Vertical Installation Method
    • STEP01
    • STEP02
    • STEP02
    • STEP03
    • STEP04
    • STEP04
    • STEP05
    • 세로시공이 완료되었습니다
